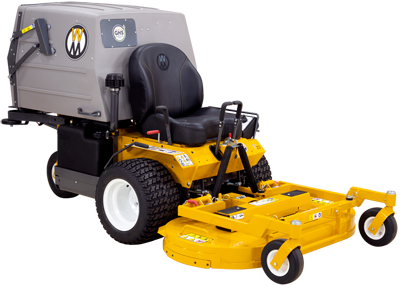

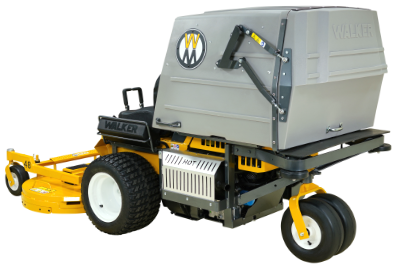

Model T23

Unmatched versatility, quality, and commercial power

T23 Model Overview

Popular with lawn maintenance professionals, the Model T23 offers the perfect balance of power, agility, durability and versatility for a wide range of mowing applications, making it a popular choice for over twenty-five years. The carbureted Kohler Command Pro CH680 engine provides maintainable power for any job.

Type: Collection
Power: 23 HP
Engine: Kohler
Ideal Application:
Commercial Properties, Multi-Unit Complexes
Key Attributes: Compact, Agile, Versatile
Standard Options: 18 x 9.5-8 Turf Tire, Comfort Seat
Decks:
Popular Add-ons:
Implement Hitch
48” Dozer Blade
Two-Stage Snowblower
Boom Sprayer

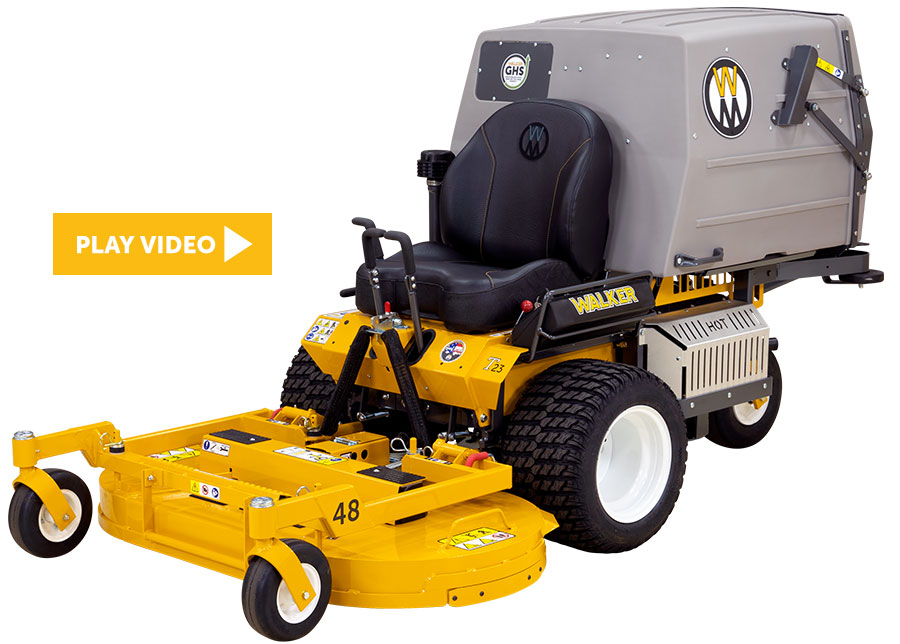

T23 Video Play Button




Ready to try one for yourself?
Get a Demo

Key Attributes

Fully Synthetic Oil

Kohler Pro 300-Hour Extended Life Oil and Filter Equipped

kohler-oil-bottles-filter-set-GRAY

Transmission Oil
Performance System

Enhanced drivetrain protection and performance

Key Attributes - Compact

Compact

Get Into and Out of Tight Spots

Key Attributes - Non-Collection

Non-Collection

Option Available

T23 Comparison



  T23 t27i
Engine Kohler CH680 Kohler ECH749
Fuel System Carb EFI
Cooling System Air Air
Displacement 674 cc (41.1 cu. in.) 747 cc (45.6 cu. in.)
Max Power 22.5 HP @ 3600 RPM 26.5 HP @ 3600 RPM
Max Torque  36.6 ft-lbs 40 ft-lbs
Fuel Capacity 4.7 gal (17.8 liter) 4.7 gal (17.8 liter)
Seat Comfort Seat Comfort Seat
Weight 790 lbs (358 kg)[1]
1009 lbs (458 kg)[2]		 787 lbs (357 kg)[1]
1006 lbs (457 kg)[2]
Dimensions 50 in (127 cm)" H x 49.25 in (125 cm)" W x 93.25 in (237 cm)" L[2] 50 in (127 cm)" H x 49.25 in (125 cm)" W x 93 in (236 cm)" L[2]

[1] Tractor only. [2] Tractor with C48 deck.

Own A T23

New Call-to-action
Request A Demo
Download Brochure
Download Brochure
New Call-to-action
Calculate Productivity Savings

Warranty

2YEARSentire tractor
3YEARSor 3000 hours on drive system*
3YEARSengine
LEARN MORE *Gear Axle Assembly, Hydrostatic Transmissions for C, D, T and Hydrostatic Transaxles for B, H, S, R

Gallery

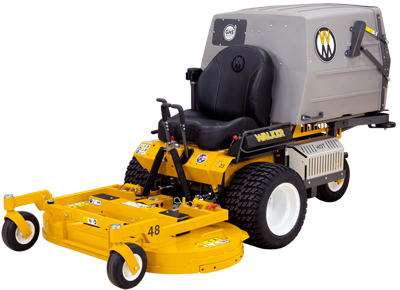

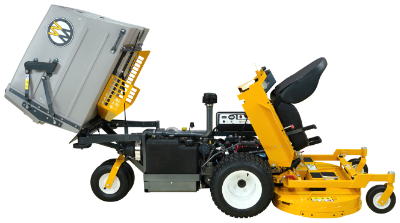

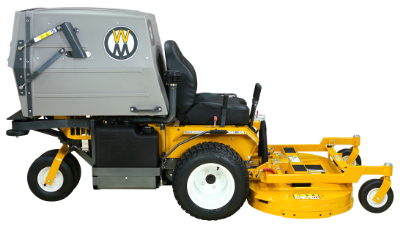

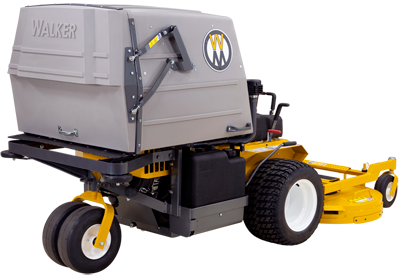

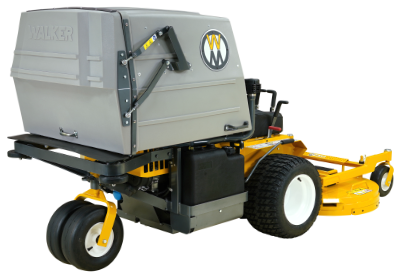

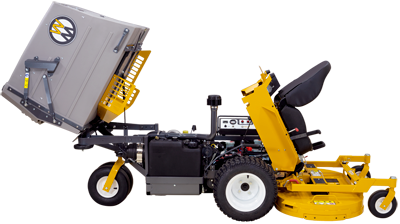

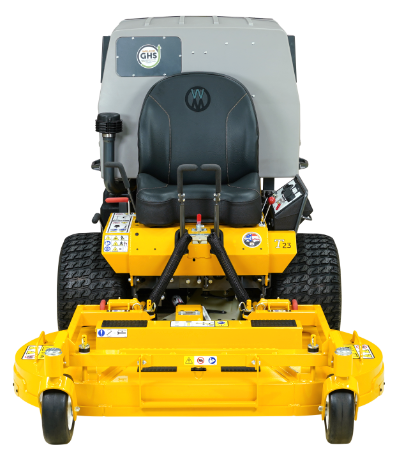

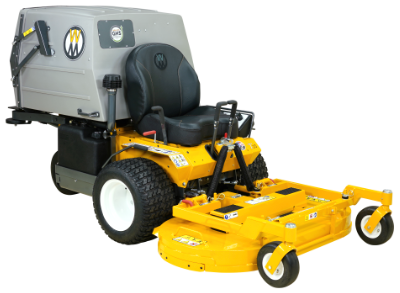

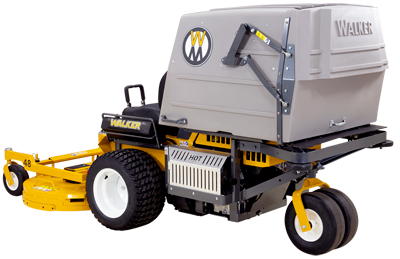

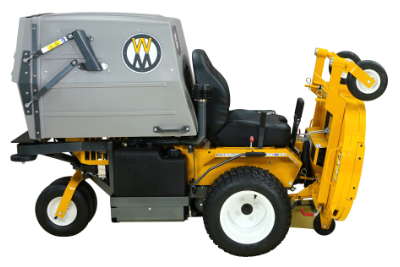

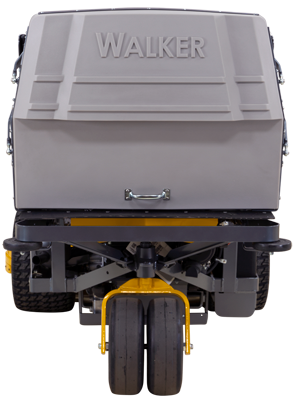

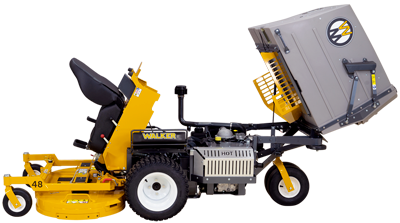

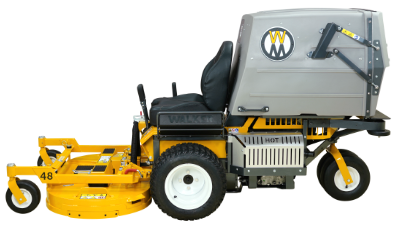

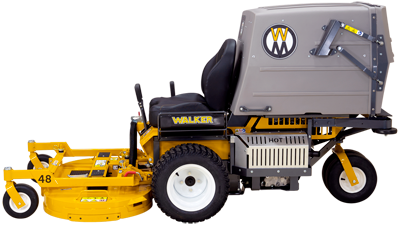

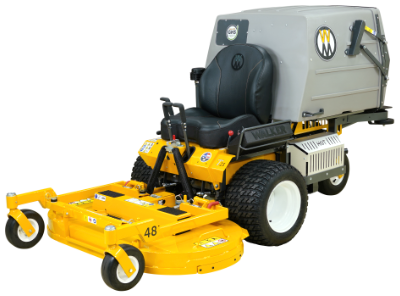

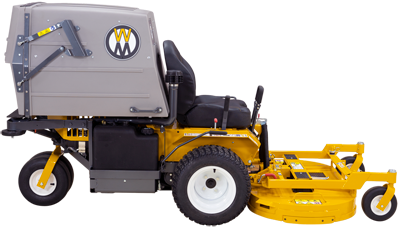

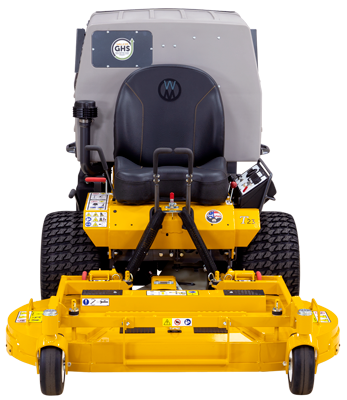

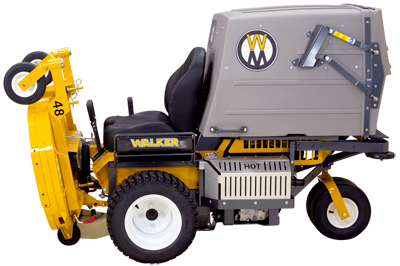

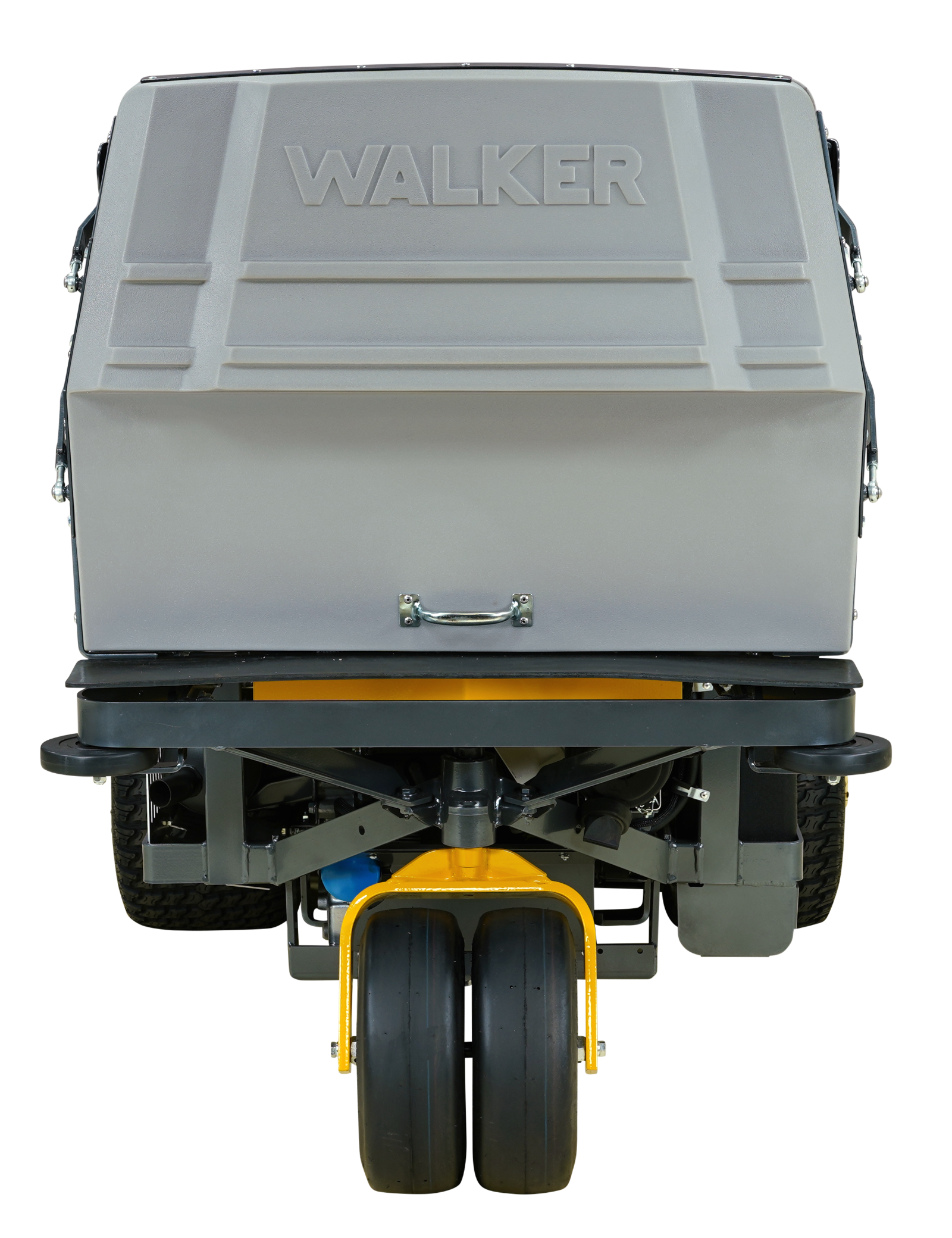

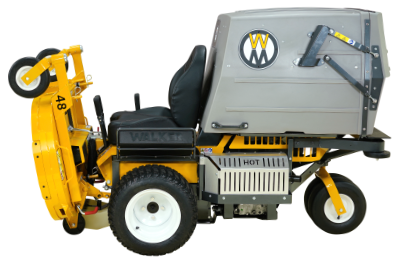

T23 Studio 1
T23 Studio 2
T23 Studio 3
T23 Studio 4
T23 Studio 5
T23 Studio 6
T23 Studio 7
T23 Studio 8
T23 Studio 9
T23 Studio 10
T23 Studio 11
T23 Studio 12

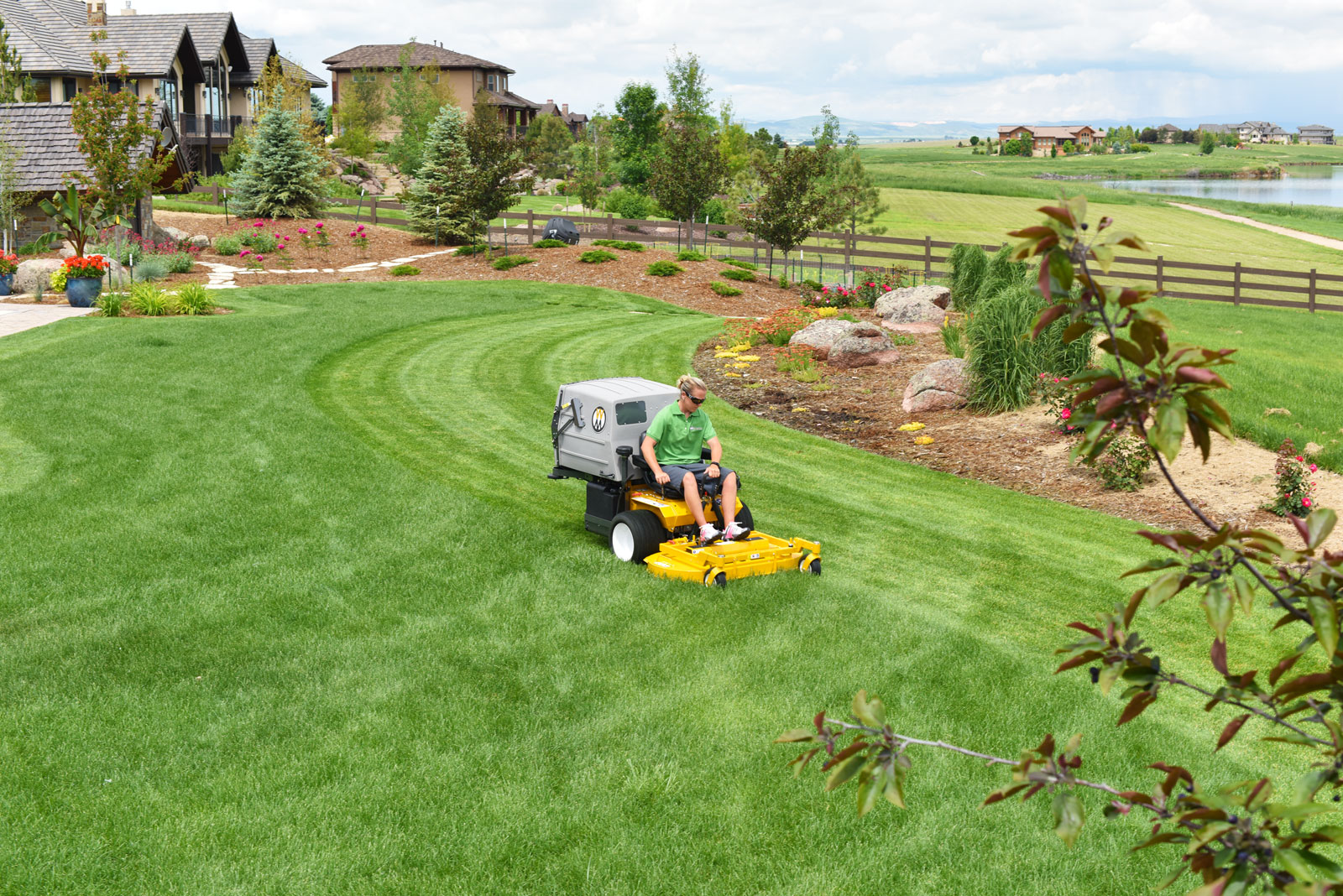

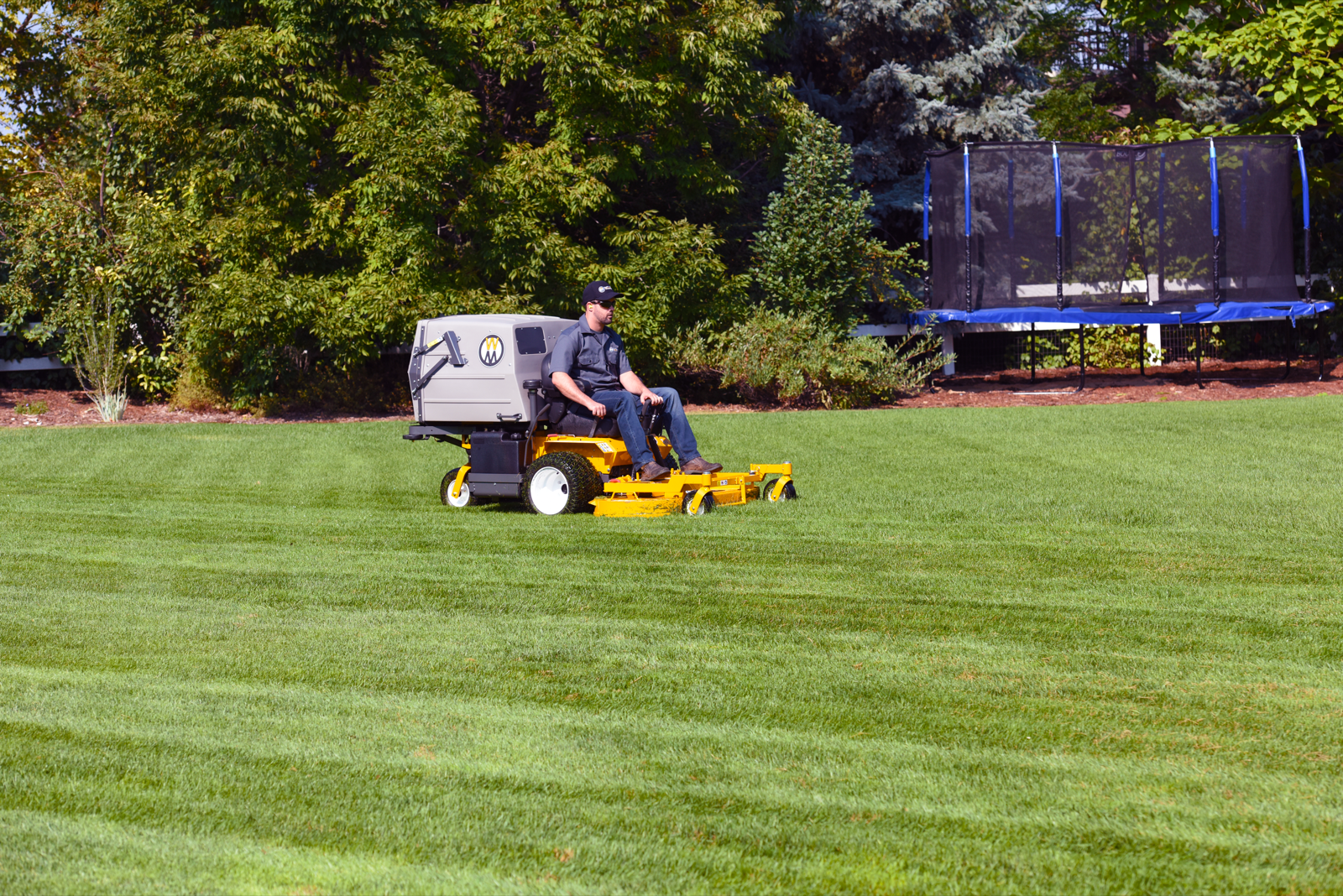

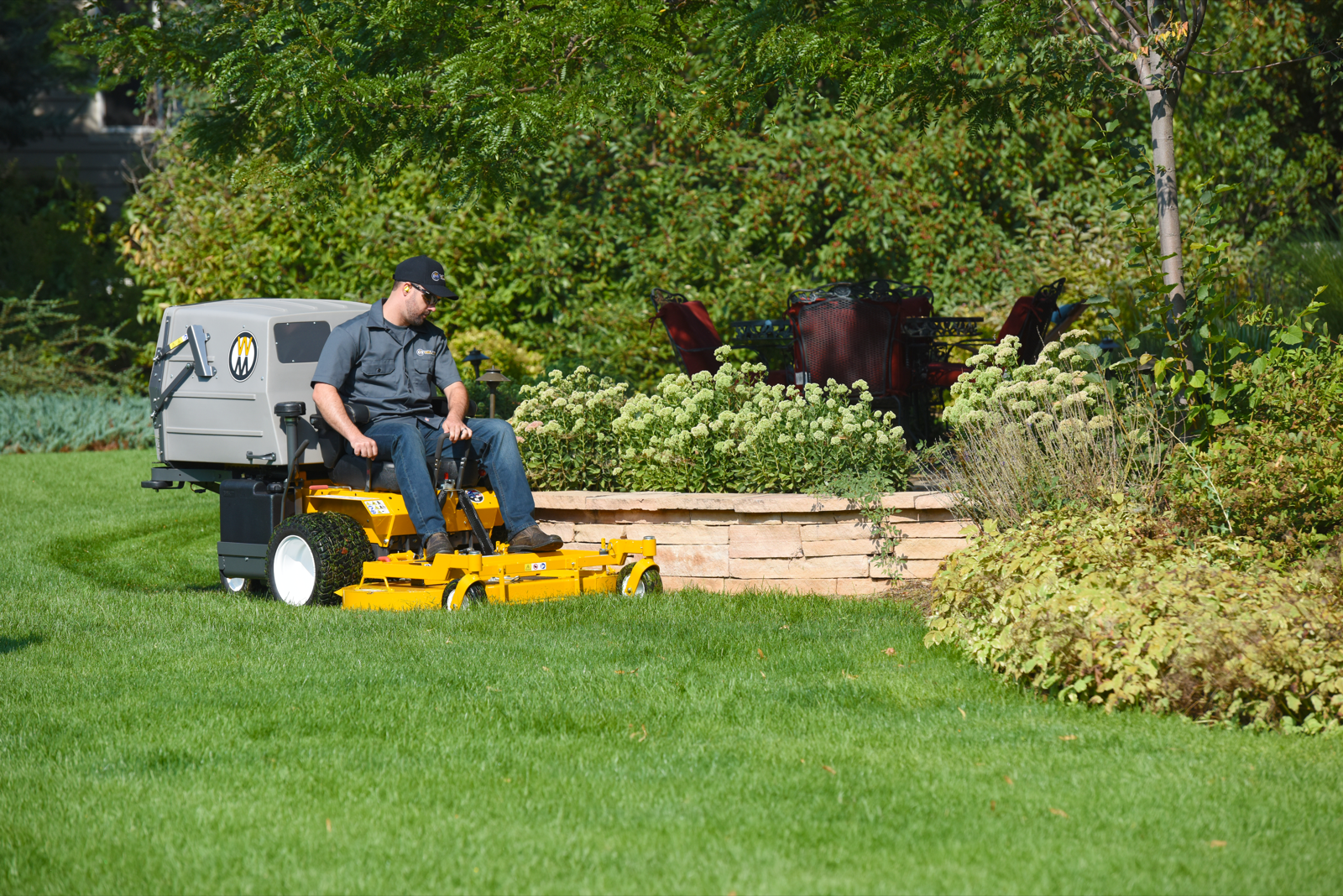

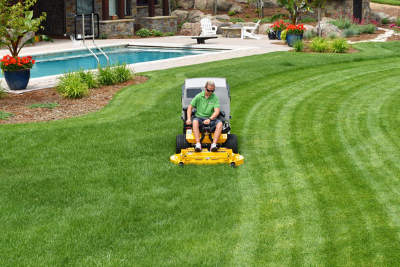

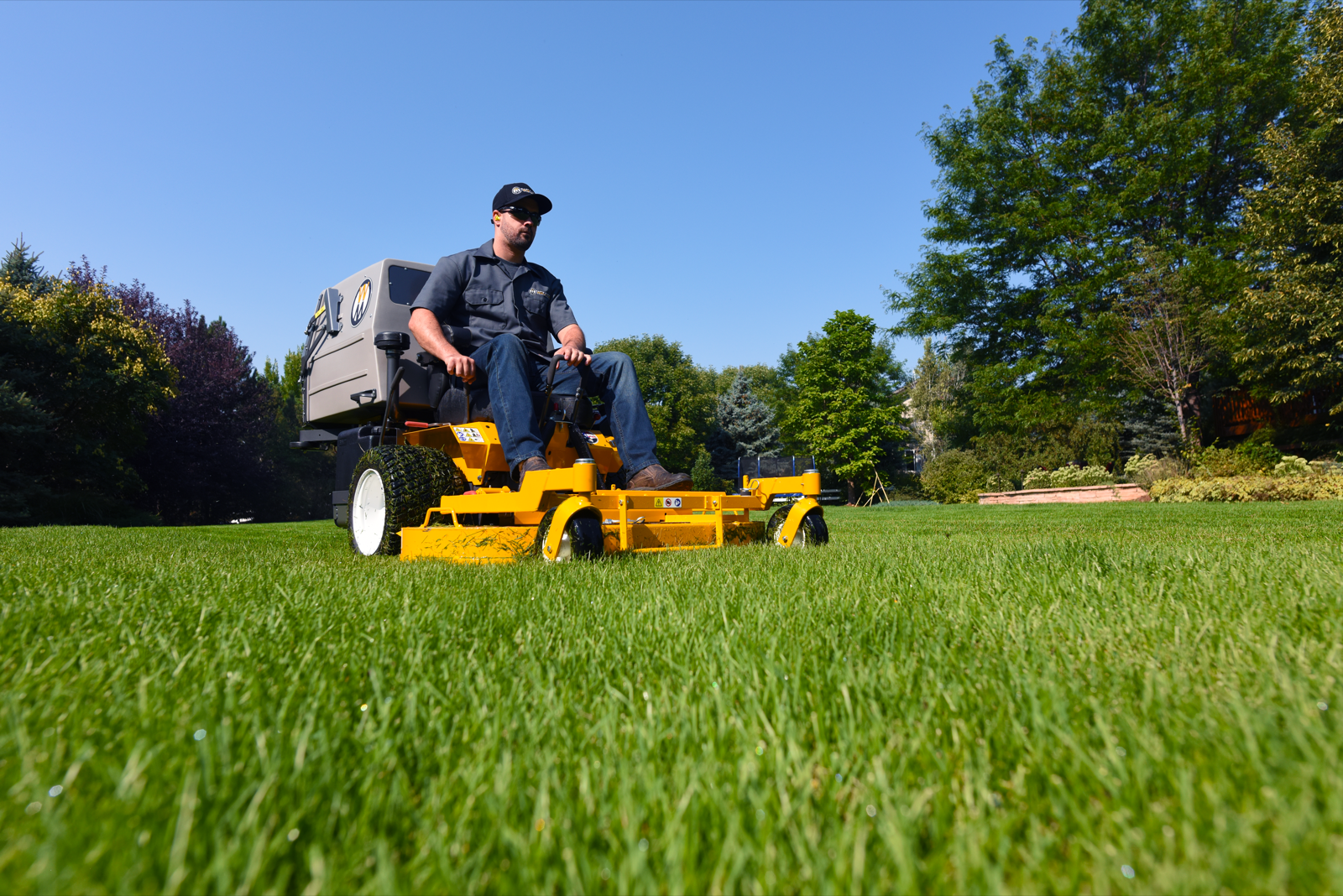

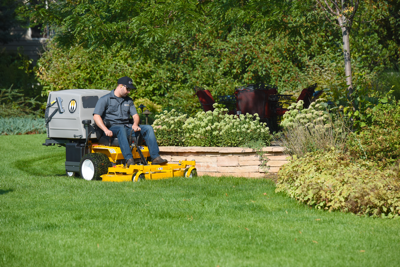

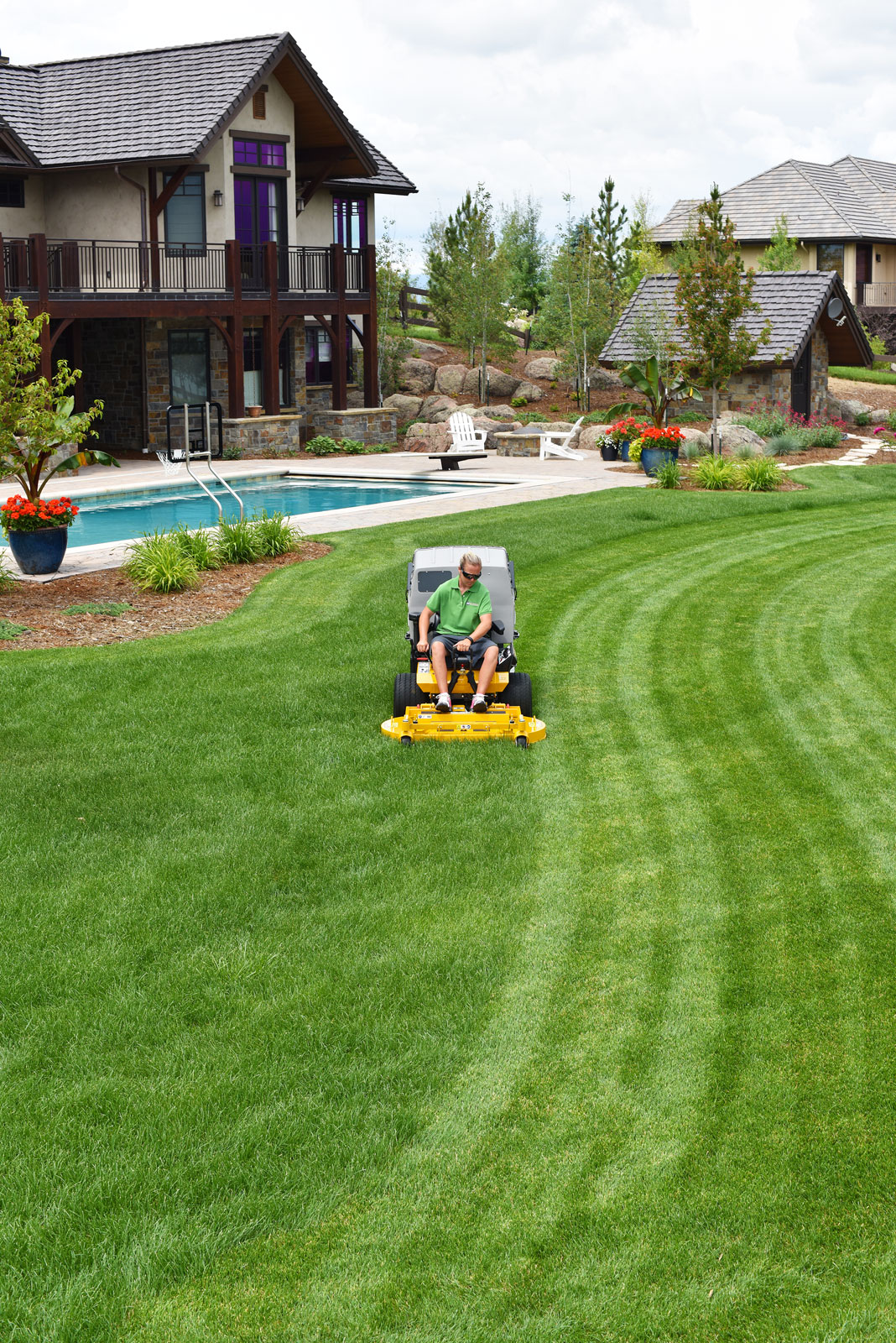

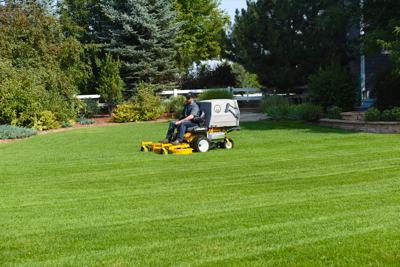

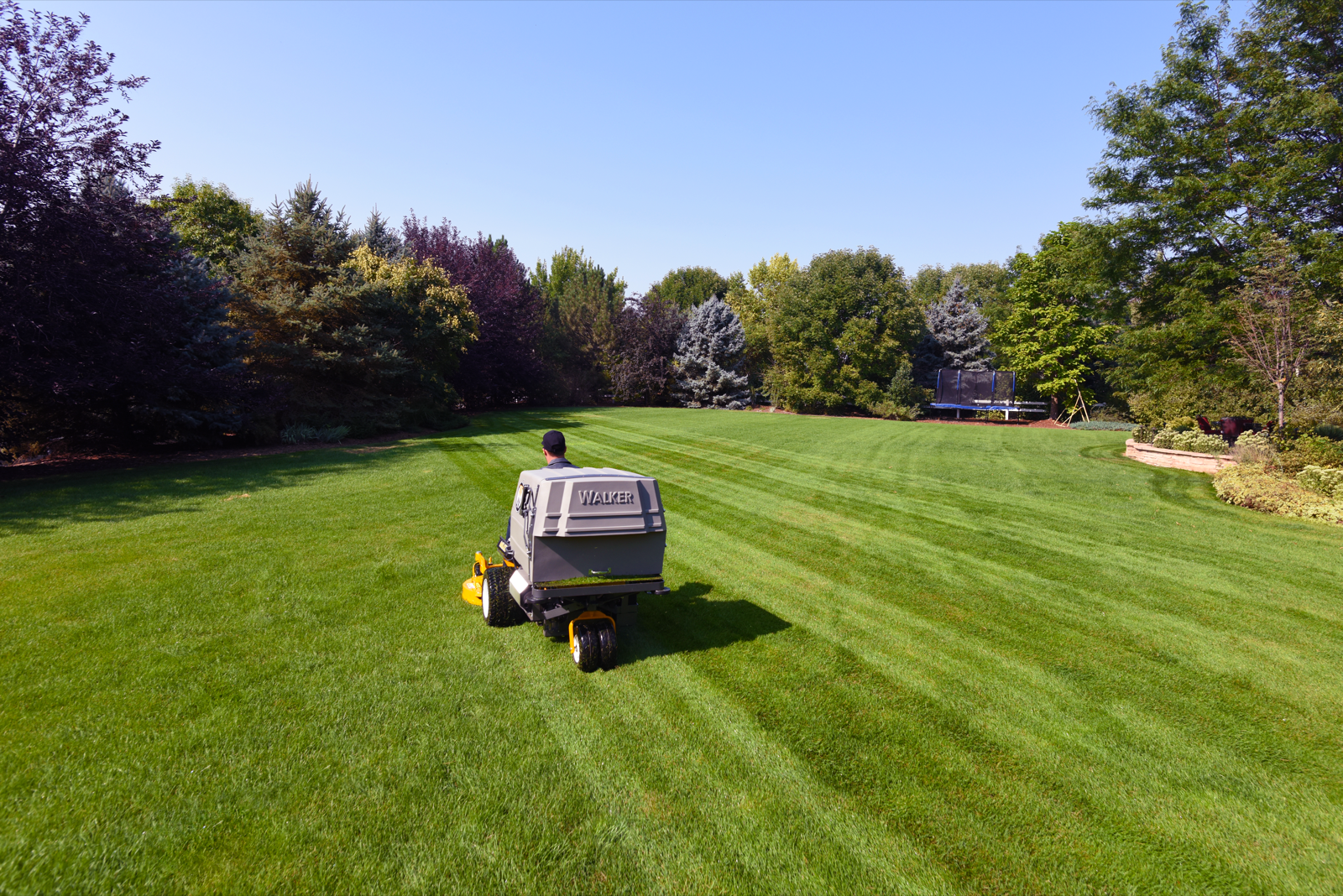

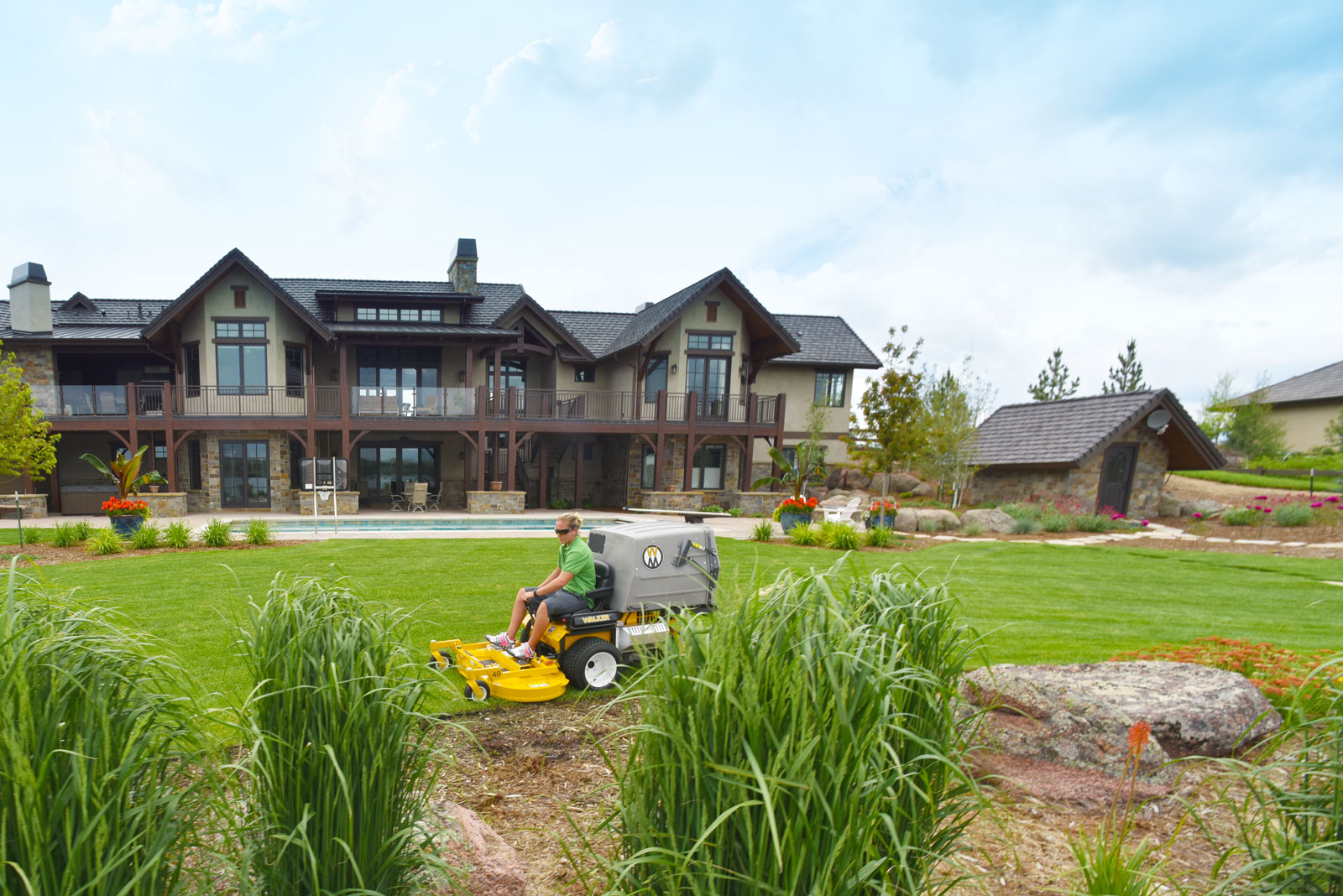

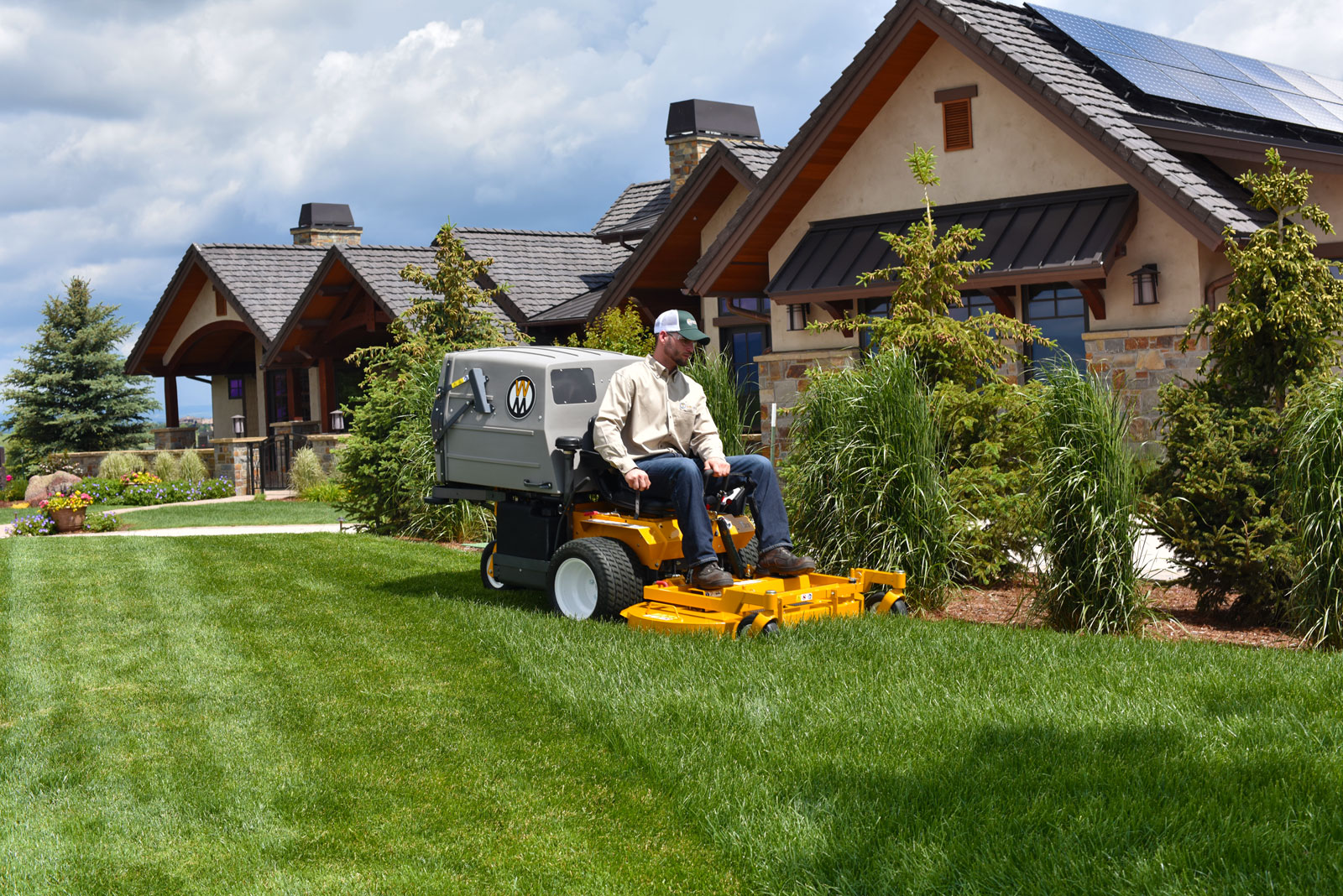

T23 Action 1
T23 Action 2
T23 Action 3
T23 Action 4
T23 Action 5
T23 Action 6
T23 Action 7
T23 Action 8
T23 Action 9
T23 Action 10
T23 Action 11
T23 Action 12

Specifications

Engine

Manufacturer: Kohler

Model: Command Pro® CH680

Displacement: 674 cc (41.1 cu. in.)

Max Power: 22.5 HP @ 3600 RPM

Max Torque: 36.6 ft-lbs

Cooling System: Air

Fuel: Gasoline (unleaded - 87 octane)

Fuel Capacity: 4.7 gal (17.8 liter)

Electrical

Battery: 12V, 35AH, 300 CCA

Charging System: Flywheel Alternator

Charging Output: 15 Amp DC (Regulated)

Transmission

Manufacturer/Model: Eaton Model 7 transmission with ductile cast iron final drive, Dual Hydrostatic, each wheel independently driven

Steering: Hand Lever Control, Individual Wheel

Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position

Parking Brake: Mechanical Pin Lock in Transmission Gear

Forward MPH (km/h): 0-6.5 MPH (0-10.5 km/h) Infinitely Variable

Neutral: Transmission Release by Manual Dump Valve

Blade Drive

PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints

Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake [Stops Blades within Five (5) Seconds of Disengagement]

Grass Handling

Blower: Three-Blade Paddle Wheel. 4-1/2 x 10-1/2 x 1/2 in. (11 x 27 x 1 cm)

Max. Blower RPM: 4000 RPM

Grass Catcher Capacity: 93 Gal / 10.0 Bu / 352 L

Full Signal: Grass-Pak® full signal alerts operator when catcher box is full

Powerfil®: Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min

Deck

Recommended Cut Width: Collection: 36 to 52 in. (91 to 132 cm), Side Discharge: 36 to 74 in (91 to 188 cm), Mulch: 36 to 52 in. (91 to 132 cm)

Cutting Height: 1 to 4 in (2.5 to 10 cm) or 1.5 to 4.5 in (4 to 11.5 cm) (DS52 and DS62 Belt Driven SD Decks Only)

Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs

Tires

Drive: 18 x 9.50-8 (Pneumatic 4-Ply, Standard)

Tailwheel: 13 x 5.00-6 (pneumatic 4-ply, standard dual) 13 x 8.00-6 (pneumatic 4-ply, optional single)

Deck Caster: 8 x 3.00-4 Semi-Pneumatic (Standard)8 x 3.00-4 Pneumatic 4-Ply (Optional)

Size & Weight

LENGTH

  • Tractor Only: 64.25 in (164 cm)
  • Tractor with C48 deck: 93.25 in (237 cm)
  • Tractor with deck: 77 in (196 cm)
  • Tractor wheel base: 42.25 in (107 cm)

WIDTH

  • Tractor Only (Outside Tire): 39 in (99 cm)
  • Tractor with C48 deck: 49.25 in (125 cm)
  • Tread Width: 31.75 in (80.7 cm)

HEIGHT

  • Tractor: 50 in (127 cm)

WEIGHT

  • Tractor Only: 790 lbs (358 kg)
  • Tractor with C48 deck: 1009 lbs (458 kg)

Downloads

Manuals

Released Class Model Type Model S/N Range Manual P/N Download
01/20/2023 Model-T T27i Operator's 170586 - AND ON 8000-52 PDF
01/05/2023 Model-T T23 Operator's 170586 - AND ON 8000-51 PDF
10/10/2022 Model-T T27i Parts 170586 - AND ON 8000-50 PDF
10/06/2022 Model-T T23 Parts 170586 - AND ON 8000-49 PDF
05/25/2021 Model-T T23 Operator's 168447 - 170585 8000-44 PDF
05/12/2021 Model-T T27i Operator's 168491 - 170585 8000-46 PDF
04/30/2021 Model-T T27i Parts 168491 - 170585 8000-45 PDF
04/26/2021 Model-T T23 Parts 168447 - 170585 8000-43 PDF
06/24/2020 Model-T T23 Operator's 159238 - 168446 8000-41 PDF
05/14/2020 Model-T T30i Parts 150226 - 159965 8000-42 PDF
01/08/2020 Model-T T25i Parts 150266 - AND ON 8000-40 PDF
01/08/2020 Model-T T27i Parts 159728 - 168490 8000-37 PDF
12/11/2019 Model-T T27i Operator's 159728 - 168490 8000-38 PDF
11/08/2019 Model-T T23 Parts 152912 - 168446 8000-39 PDF
04/24/2019 Model-T T30i Operator's 153891 - 159965 8000-35 PDF
04/02/2019 Model-T T23 Operator's 152086 - 159237 8000-34 PDF
02/13/2019 Model-T T25i Operator's 152131 - AND ON 8000-36 PDF
05/10/2018 Model-T T25i Operator's 148521 - 152130 8000-30 PDF
04/12/2018 Model-T T23 Parts 149093 - 152911 8000-31 PDF
02/14/2018 Model-T T25i Parts 148521 - 150265 8000-29 PDF
10/05/2017 Model-T T30i Operator's 134970 - 153890 8000-28 PDF
10/05/2017 Model-T T23 Operator's 134242 - 152085 8000-27 PDF
01/12/2017 Model-T T23 Parts 134242 - 149092 8000-25 PDF
12/15/2016 Model-T T25i Operator's 134121 - 148520 8000-24 PDF
01/07/2016 Model-T T30i Operator's 124884 - 124969 8000-22 PDF
09/11/2015 Model-T T23 Operator's 124812 - 134241 8000-21 PDF
08/31/2015 Model-T T23 Parts 124812 - 134241 8000-20 PDF
05/01/2015 Model-T T25i Parts 134121 - 148520 8000-23 PDF
11/20/2013 Model-T T25i Operator's 125598 -134120 8000-17 PDF
11/18/2013 Model-T T25i Parts 125598 -134120 8000-18 PDF
10/07/2013 Model-T T30i Parts 124884 - 150225i 8000-19 PDF
08/09/2009 Model-T MT, MTL Operator's 103844 - 125597 8000-16 PDF
04/01/2009 Model-T MT, MTL Parts 100103 - 125597 8000-15 PDF
04/01/2007 Model-T MT, MTL Operator's 92089 - 103843 8000-14 PDF
04/01/2007 Model-T MT, MTL Parts 85932 - 100102 8000-13 PDF
11/15/2005 Model-T MT, MTL Operator's 75988 - 92088 8000-11 PDF
09/15/2005 Model-T MT, MTL Parts 75988 - 85931 8000-12 PDF
04/01/2004 Model-T MT, MTL Parts 66327 - 75987 8000-10 PDF
01/01/2004 Model-T MT, MTL Operator's 71497 - 75987 8000-9 PDF
01/31/2003 Model-T MT, MTL Parts 54651 - 66326 8000-7 PDF
06/01/2002 Model-T MT, MTL Operator's 49592 - 71496 8000-6 PDF
03/29/2000 Model-T MT, MTL Parts 37480 - 54650 8000-4 PDF
08/14/1998 Model-T MT, MTL Operator's 21329 - 49591 8000-1 PDF
05/22/1997 Model-T MT, MTL Parts 21329 - 37479 8000-2 PDF
03/01/1993 Model-T MT, MTL Parts 12717 - 21328 8895-1 PDF
03/01/1992 Model-T MT, MTL Operator's 12717 - 21328 7895 PDF
