This higher horsepower, new generation version of the Model B adds a Kohler 26.5 HP, EFI engine and includes a redesigned unitized chassis and front body. The new clamshell body makes drivetrain component access easier, and the Ogura electric clutch with Soft Start adds convenience and durability for the operator.
An oversized Donaldson 5 inch air filter is fitted with a turbine style pre-cleaner and restriction gauge to reduce maintenance intervals while providing a robust filtration system. A new rear axle design improves rough condition handling, coupled with Walker’s Comfort Seat and optional 20” drive tires, make the B27i a comfortable machine that is powerful, efficient, and ready for larger decks and difficult conditions.
With numerous deck sizes and styles, optional LED Lights, Suspension Seat, Big Tire Kit, and Utility Dump Bed, the Model B is customizable to meet the needs of the most demanding customers. Contact your local dealer to request a demo today.
Type: Non-Collection
Power: 26.5 HP
Engine: Kohler EFI
Ideal Application:
Commercial and Rural Properties
Key Attributes: Hillside Stability, Efficient, High Production
Standard Options: 18 x 8.5-10 Turf Tire, Comfort Seat
Decks:
Popular Add-ons:
36” Single-Stage Snowblower
48” Dozer Blade
Big Tire Kit
 |
 |
|
|---|---|---|
| Engine | Kohler CH680 | Kohler ECH749 |
| Fuel System | Carb | EFI |
| Cooling System | Air | Air |
| Displacement | 674 cc (41.1 cu. in) cc | 747 cc (45.6 cu. in.) cc |
| Max Power | 22.5 HP @ 3600 RPM | 26.5 HP @ 3600 RPM |
| Max Torque | 36.8 ft-lbs | 40 ft-lbs |
| Fuel Capacity | 4.7 gal (17.8 liter) | 4.7 gal (17.8 liter) |
| Seat | Comfort Seat | Comfort Seat |
| Tires | 18 x 8.5-10 (Pneumatic 4-Ply Low-Profile) | 18 x 8.5-10 (Pneumatic 4-Ply Low-Profile) |
| Weight | 600 lbs (272 kg)[1] 806 lbs (368 kg)[2] |
606 lbs (275 kg)[1] 812 lbs (385 kg)[3] |
| Dimensions | 39.5 in (100 cm)" H x 49 in (125 cm)" W x 90.75 in (230 cm)" L[2] | 39.5 in (100 cm)" H x 49 in (125 cm)" W x 90.75 in (230 cm)" L[2] |
[1] Tractor only. [2] Tractor with M48 deck. [3] Tractor with M52 deck.
|
|
|
|---|---|---|
| Engine | Kohler CH680 | Kohler ECH749 |
| Fuel System | Carb | EFI |
| Cooling System | Air | Air |
| Displacement | 674 cc (41.1 cu. in) cc | 747 cc (45.6 cu. in.) cc |
| Max Power | 22.5 HP @ 3600 RPM | 26.5 HP @ 3600 RPM |
| Max Torque | 36.8 ft-lbs | 40 ft-lbs |
| Fuel Capacity | 4.7 gal (17.8 liter) | 4.7 gal (17.8 liter) |
| Seat | Comfort Seat | Comfort Seat |
| Tires | 18 x 8.5-10 (Pneumatic 4-Ply Low-Profile) | 18 x 8.5-10 (Pneumatic 4-Ply Low-Profile) |
| Weight | 600 lbs (272 kg)[1] 806 lbs (368 kg)[2] |
606 lbs (275 kg)[1] 812 lbs (385 kg)[2] |
| Dimensions | 39.5 in (100 cm)" H x 49 in (125 cm)" W x 90.75 in (230 cm)" L[2] | 39.5 in (100 cm)" H x 49 in (125 cm)" W x 90.75 in (230 cm)" L[2] |
[1] Tractor only. [2] Tractor with M48 deck.
Manufacturer: Kohler
Model: ECH749, EFI
Displacement: 747 cc (45.6 cu. in.)
Max Power: 26.5 HP @ 3600 RPM
Governed RPM: 3600
Max Torque: 40 ft-lbs
Cooling System: Air
Fuel: Automotive Grade Unleaded Gasoline (87 Octane Minimum, 10% Ethanol Maximum)
Fuel Capacity: 4.7 gal (17.8 liter)
Battery: 12V, 340CCA
Charging System: Flywheel Alternator
Charging Output: 20 Amp DC (Regulated)
Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles
Steering: Hand Lever Control, Individual Wheel
Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)
Forward MPH (km/h): 0-8 MPH (0-13) Infinitely Variable
Neutral: Transmission Release by Manual Dump Valve
PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints
Blade Drive Clutch and Brake: Ogura Electric Clutch with Soft Start Engagement and Mechanical Brake [Stops Blades within Five (5) Seconds of Disengagement]
Recommended Cut Width: Side Discharge: 36 to 74 in. (91 to 188 cm), Mulch: 36 to 52 in. (91 to 132 cm)
Cutting Height: 1.5 to 4 in. (4 to 10 cm) 1.5 to 4.5 in. (4 to 11.5 cm) (DS52 & DS62 Belt Driven Decks Only)
Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs
Drive: 18 x 8.50-10 (Pneumatic 4-Ply Low-Profile)
Tailwheel: 11 x 4.00-5 (Pneumatic 6-Ply)
Deck Caster: 8 x 3.00-4 (Semi-Pneumatic, All Decks Except DS52, DS62, DS74) 8 x 3.00-4 Pneumatic 4-Ply (Optional), All Decks Except DS52, DS62, DS74
LENGTH
WIDTH
HEIGHT
WEIGHT
| Released | Class | Model | Type | Model S/N Range | Manual P/N | Download |
|---|---|---|---|---|---|---|
| 11/25/2024 | Model-B | B27i | Parts | 184730 - AND ON | 4000-45 | |
| 07/13/2023 | Model-B | B23 | Parts | 178742 - AND ON | 4000-43 | |
| 07/13/2023 | Model-B | B23 | Operator's | 178742 - AND ON | 4000-44 | |
| 05/25/2023 | Model-B | B27i | Operator's | 178742 - AND ON | 4000-42 | |
| 05/01/2023 | Model-B | B27i | Parts | 178742 - 184729 | 4000-41 | |
| 04/20/2022 | Model-B | B23 | Parts | 172949 - 178741 | 4000-40 | |
| 03/22/2022 | Model-B | B23 | Operator's | 172949 - 178741 | 4000-39 | |
| 01/04/2022 | Model-B | B27i | Parts | 172977 - 178741 | 4000-38 | |
| 12/22/2021 | Model-B | B27i | Operator's | 172977 - 178741 | 4000-36 | |
| 12/08/2021 | Model-B | B27i | Parts | 165084 - 172976 | 4000-37 | |
| 04/26/2021 | Model-B | B23 | Operator's | 169308 - 172948 | 4000-35 | |
| 04/23/2021 | Model-B | B23 | Parts | 169308 - 172948 | 4000-34 | |
| 08/27/2020 | Model-B | B18 | Operator's | 161000 - 166214 | 4000-32 | |
| 08/27/2020 | Model-B | B19 | Operator's | 161698 - 164558 | 4000-33 | |
| 04/23/2020 | Model-B | B27i | Parts | 162292 - 165083 | 4000-27 | |
| 04/01/2020 | Model-B | B27i | Operator's | 162292 - 172976 | 4000-28 | |
| 03/31/2020 | Model-B | B18 | Parts | 157301 - 166214 | 4000-31 | |
| 03/26/2020 | Model-B | B19 | Parts | 152272 - 164558 | 4000-30 | |
| 02/05/2020 | Model-B | B23i | Parts | 149239 - 163226 | 4000-29 | |
| 06/25/2019 | Model-B | B18 | Operator's | 151820 - 161000 | 4000-24 | |
| 05/23/2019 | Model-B | B19 | Operator's | 155209 - 161697 | 4000-25 | |
| 12/14/2018 | Model-B | B18 | Parts | 151820 - 157300 | 4000-26 | |
| 09/25/2018 | Model-B | B23i | Operator's | 154037 - 163226 | 4000-23 | |
| 02/16/2018 | Model-B | B19 | Parts | 149239 - 152271 | 4000-22 | |
| 02/07/2018 | Model-B | B23i | Parts | 146779 - 149238 | 4000-21 | |
| 11/22/2017 | Model-B | B19 | Operator's | 134381 - 155208 | 4000-19 | |
| 11/10/2017 | Model-B | B18 | Operator's | 133002- 151819 | 4000-18 | |
| 10/09/2017 | Model-B | B18 | Parts | 133002 - 151819 | 4000-20 | |
| 12/15/2016 | Model-B | B19 | Parts | 137381 - 149238 | 4000-16 | |
| 01/14/2016 | Model-B | B23i | Operator's | 124998 - 133533 | 4000-14 | |
| 12/21/2015 | Model-B | B25p | Operator's | 133534 - AND ON | 4000-13 | |
| 12/21/2015 | Model-B | B18 | Operator's | 125166 - 133001 | 4000-11 | |
| 04/01/2015 | Model-B | B23i | Parts | 133534 - 146778 | 4000-15 | |
| 04/01/2015 | Model-B | B23i | Operator's | 133534 - 154036 | 4000-17 | |
| 04/01/2015 | Model-B | B25p | Operator's | 130000 - 133534 | 4000-9 | |
| 02/07/2014 | Model-B | B18 | Parts | 125166 - 133001 | 4000-10 | |
| 10/23/2013 | Model-B | B25p | Parts | 126729 - AND ON | 4000-8 | |
| 10/01/2013 | Model-B | B19 | Parts | 124800 - 137380 | 4000-7 | |
| 10/01/2013 | Model-B | B19 | Operator's | 124800 - 137380 | 4000-12 | |
| 4/20/2012 | Model-B | MBK23 | Operator's | 116942 - 124997 | 4000-5 | |
| 4/20/2012 | Model-B | MBK23 | Parts | 116942 - 124997 | 4000-6 | |
| 04/01/2010 | Model-B | MB | Operator's & Parts | 104436 - 124799 | 4000-4 | |
| 09/01/2008 | Model-B | MB | Operator's & Parts | 96431 - 104435 | 4000-3S | |
| 09/01/2006 | Model-B | MB | Operator's & Parts | 85248 - 96430 | 4000-3 | |
| 12/15/2005 | Model-B | MB | Operator's & Parts | 79432 - 85247 | 4000-2 | |
| 10/01/2004 | Model-B | MB | Operator's & Parts | 68441 - 79431 | 4000-1 |

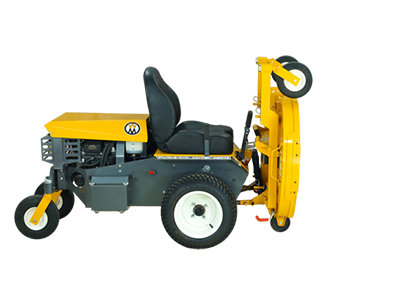

Shown with optional
