Model B27ix

Purpose-built for large-scale commercial properties

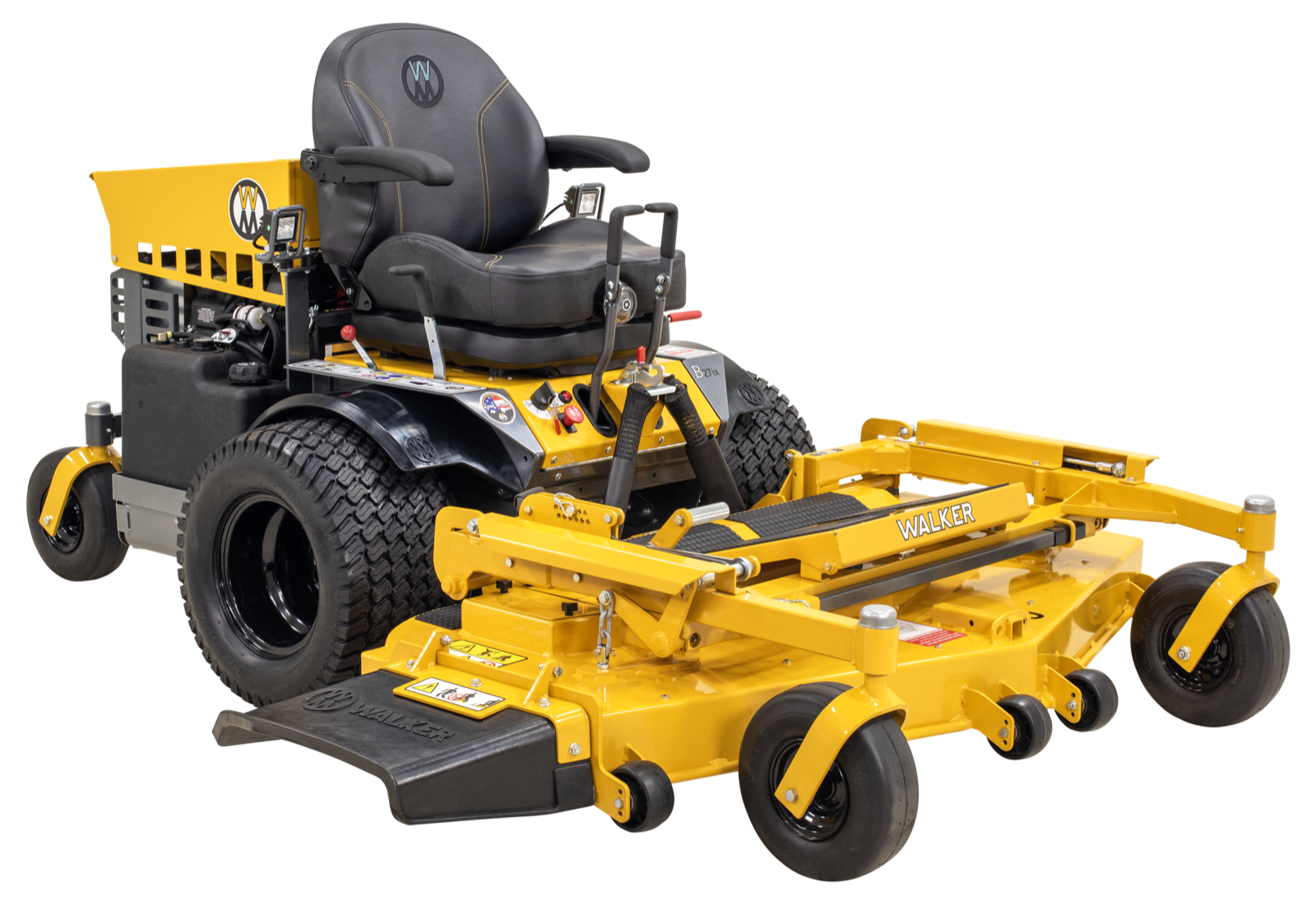

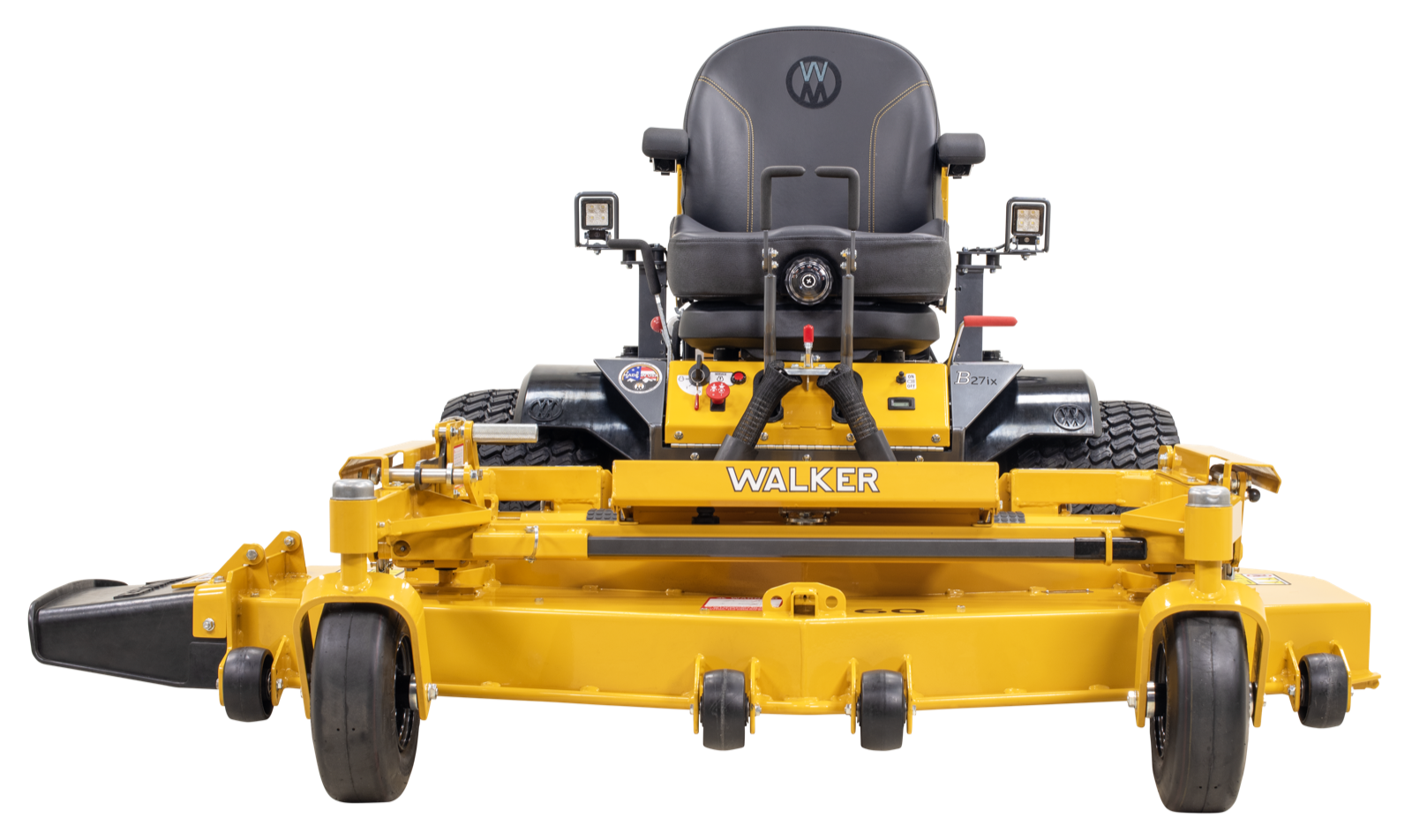

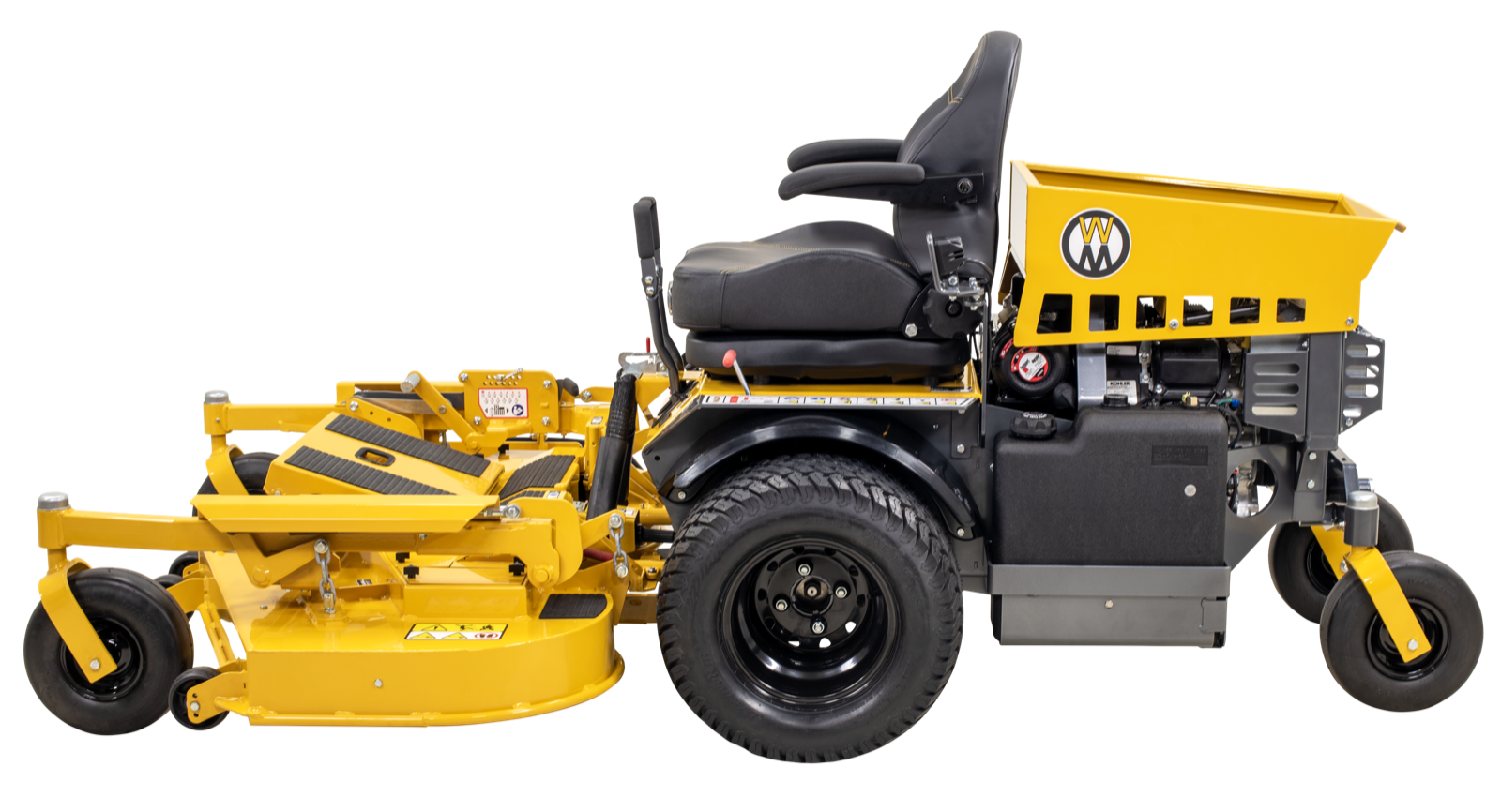

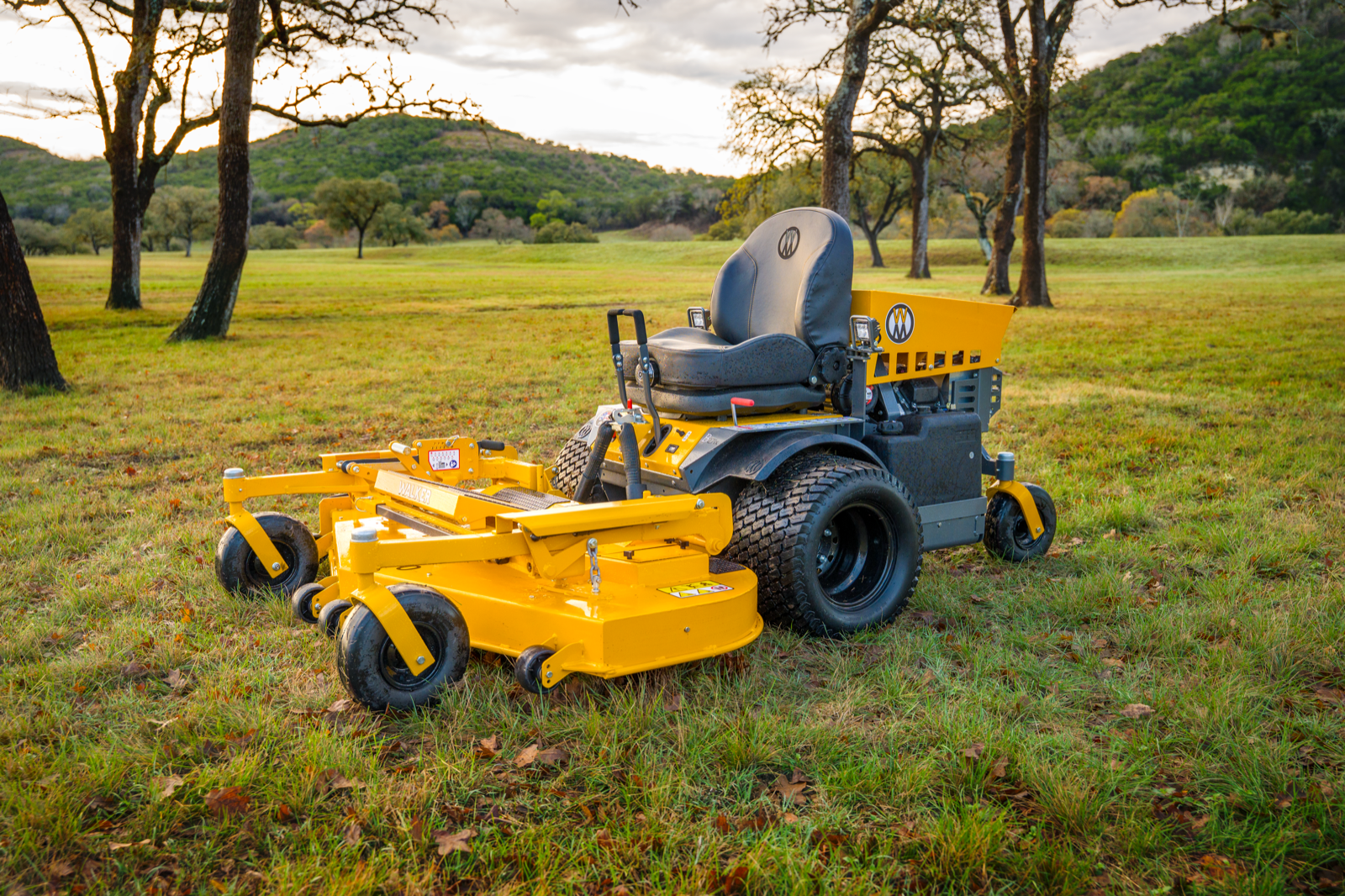

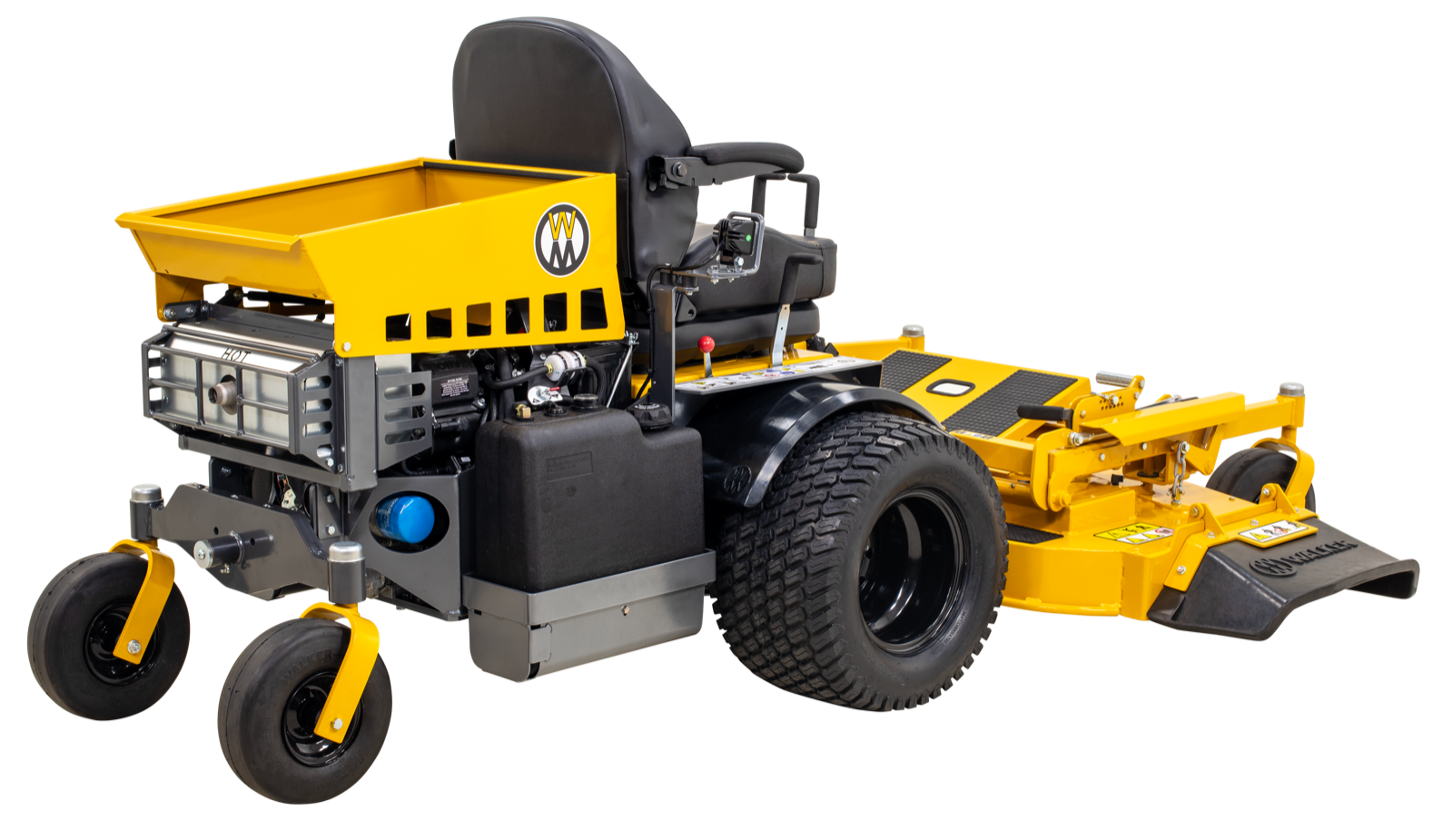

B27ix Model Overview

The B27ix is a high-performance, non-collection mower designed to aggressively compete in the high-production commercial market. Positioned to disrupt the mid-mount segment, it features a 26.5 HP Rehlko EFI engine and supports decks up to 74”. The machine is purpose-built for large-scale commercial properties where efficiency is paramount. With a modern, aggressive visual identity and new fenders to reduce operator spray, the B27ix offers a superior power-to-weight ratio, providing better hillside control and improved productivity than bulkier competitor machines in its class.

Type: Non-Collection
Power: 26.5 HP
Engine: Rehlko Command Pro ECH749, EFI
Ideal Application:
Large, open-space commercial properties
Key Attributes: Hillside Stability, Efficient, High Production
Standard Options: 18 x 8.5-10 Turf Tire, Comfort Seat
Decks: Discharge and Mulching 48” to 74”
Popular Add-ons:
36” Single-Stage Snowblower
48” Dozer Blade

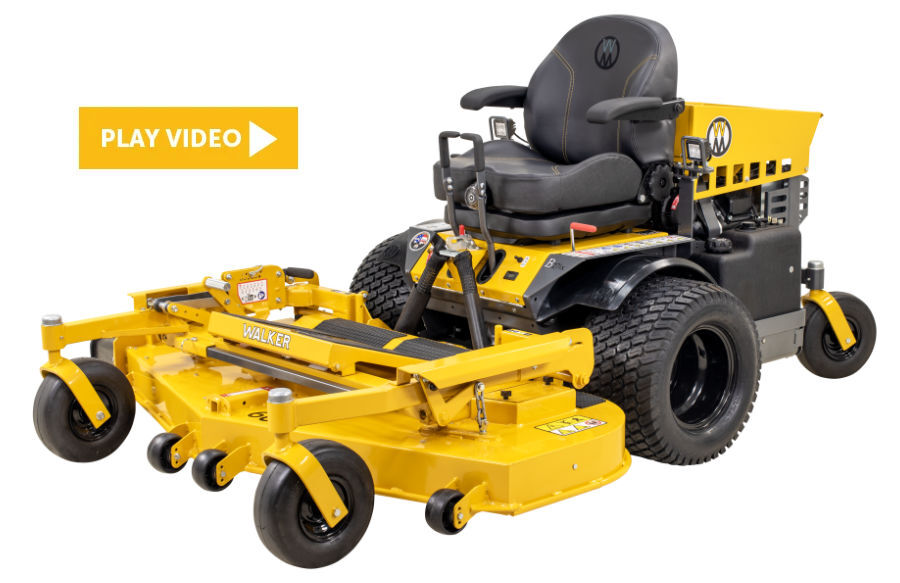

B27ix-overview




Ready to try one for yourself?
Get a Demo

Features

kohler-oil-1quart-GRAY

Fully Synthetic Oil

Kohler Pro 300-Hour Extended Life Oil Equipped

Key Features - Agile

Agile

Be Responsive, Be Profitable

Discover More

Key Features - Compact

Compact

Get Into and Out of Tight Spots

Discover More

Model B Comparison



  B23 B27i B27i
Engine Kohler CH680 Kohler ECH749 Rehlko Command Pro ECH749, EFI
Fuel System Carb EFI EFI
Cooling System Air Air Air
Displacement 674 cc (41.1 cu. in) cc 747 cc (45.6 cu. in.) cc 747 cc (45.6 cu. in.) cc
Max Power 22.5 HP @ 3600 RPM 26.5 HP @ 3600 RPM 26.5 HP @ 3600 RPM
Max Torque 36.8 ft-lbs 40 ft-lbs 40 ft-lbs
Fuel Capacity 4.7 gal (17.8 liter) 4.7 gal (17.8 liter) 9.4 gal (35.6 liter)
Seat Comfort Seat Comfort Seat Comfort Seat
Tires 18 x 8.5-10 (Pneumatic 4-Ply Low-Profile) 18 x 8.5-10 (Pneumatic 4-Ply Low-Profile) 20x12-10 (Pneumatic 4-Ply Low-Profile)
Weight 600 lbs (272 kg)[1]
806 lbs (368 kg)[2]		 606 lbs (275 kg)[1]
812 lbs (385 kg)[2]		 720 lbs (326.6 kg)[1]
1111 lbs (504 kg)[3]
Dimensions 39.5 in (100 cm)" H x 49 in (125 cm)" W x 90.75 in (230 cm)" L[2] 39.5 in (100 cm)" H x 49 in (125 cm)" W x 90.75 in (230 cm)" L[2] 45.5 in (115.57 cm)" H x 61.5 in (156 cm)" W x 97 in (246.38 cm)" L[3]

[1] Tractor only. [2] Tractor with M48 deck. [3] Tractor with S60 deck.

Own A B27ix

New Call-to-action
Request A Demo
Download Brochure
Download Brochure
New Call-to-action
Calculate Productivity Savings

Warranty

2YEARSentire tractor
2YEARSor 2000 hours on drive system*
3YEARSengine
LEARN MORE *Gear Axle Assembly, Hydrostatic Transmissions for C, D, T and Hydrostatic Transaxles for B, H, S, R and C23i

Video



Model B27i Overview (3:24)



Model B Teaser (0:31)



Model B Intro (1:32)



Model B In-Depth (5:19)



Feature: Balance



Feature: Snow Removal



Feature: Agile



Feature: Compact

Gallery

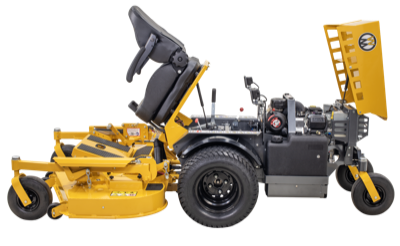

B27i Studio 1
B27i Studio 2

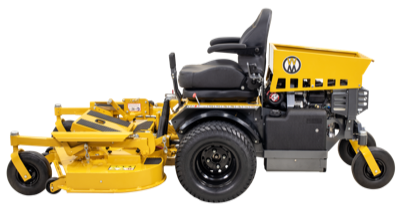

B27i Studio 3
B27i Studio 4
B27i Studio 5
B27i Studio 6

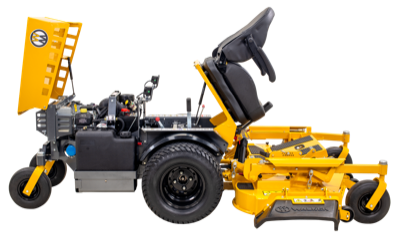

B27i Studio 7
B27i Studio 8

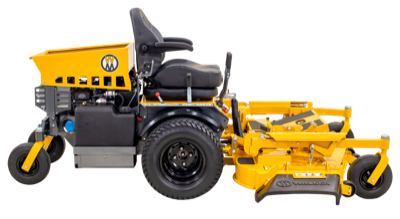

B27i Studio 9

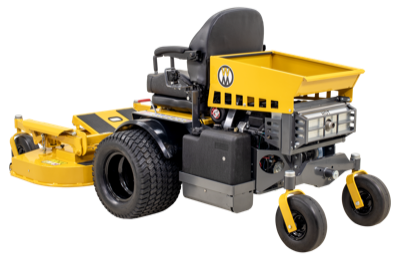

B27i Studio 10
B27i Studio 11

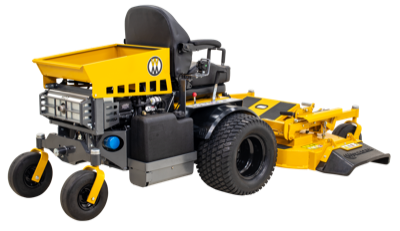

B27i Studio 12
B23i Action 1

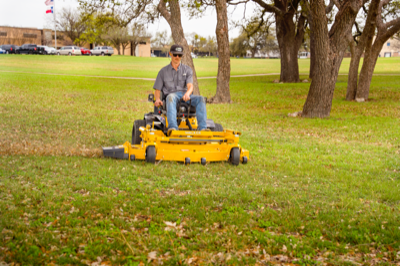

B23i Action 2
B23i Action 3
B23i Action 4
B23i Action 5
B23i Action 6

Specifications

Engine

Manufacturer: Kohler

Model: ECH749, EFI

Displacement: 747 cc (45.6 cu. in.)

Max Power: 26.5 HP @ 3600 RPM

Governed RPM: 3600

Max Torque: 40 ft-lbs

Cooling System: Air

Fuel: Automotive Grade Unleaded Gasoline (87 Octane Minimum, 10% Ethanol Maximum)

Fuel Capacity: 4.7 gal (17.8 liter)

Electrical

Battery: 12V, 340CCA

Charging System: Flywheel Alternator

Charging Output: 20 Amp DC (Regulated)

Transmission

Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles

Steering: Hand Lever Control, Individual Wheel

Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position

Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)

Forward MPH (km/h): 0-8 MPH (0-13) Infinitely Variable

Neutral: Transmission Release by Manual Dump Valve

Blade Drive

PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints

Blade Drive Clutch and Brake: Ogura Electric Clutch with Soft Start Engagement and Mechanical Brake [Stops Blades within Five (5) Seconds of Disengagement]

Deck

Recommended Cut Width: Side Discharge: 36 to 74 in. (91 to 188 cm), Mulch: 36 to 52 in. (91 to 132 cm)

Cutting Height: 1.5 to 4 in. (4 to 10 cm) 1.5 to 4.5 in. (4 to 11.5 cm) (DS52 & DS62 Belt Driven Decks Only)

Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs

Tires

Drive: 18 x 8.50-10 (Pneumatic 4-Ply Low-Profile)

Tailwheel: 11 x 4.00-5 (Pneumatic 6-Ply)

Deck Caster: 8 x 3.00-4 (Semi-Pneumatic, All Decks Except DS52, DS62, DS74) 8 x 3.00-4 Pneumatic 4-Ply (Optional), All Decks Except DS52, DS62, DS74

Size & Weight

LENGTH

  • Tractor Only: 63 in (160 cm)
  • Tractor with M48 deck: 90.75 in (230 cm)

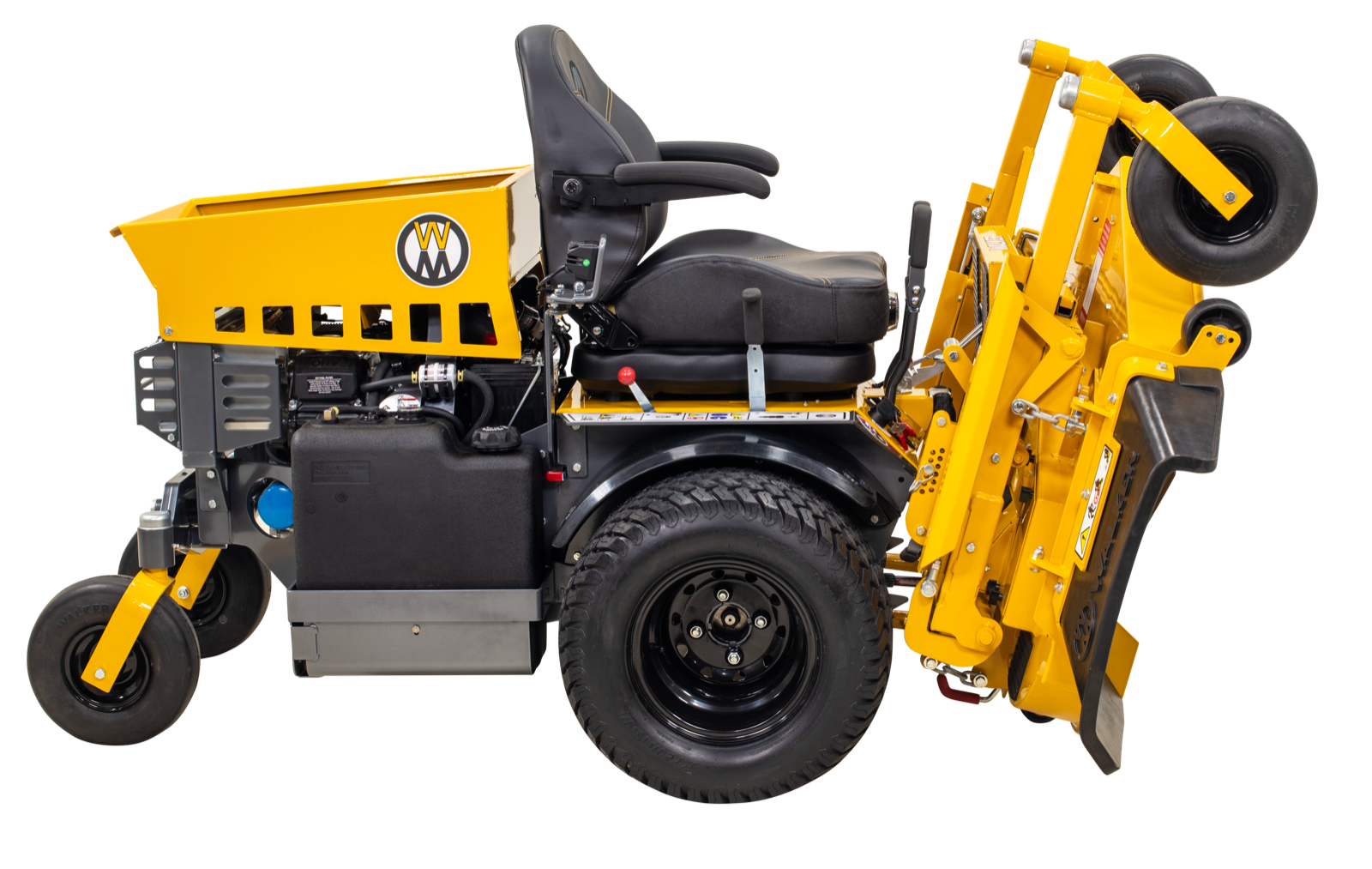

  • Tractor with deck tilted: 72 in (183 cm)
  • Tractor wheel base: 40 in (102 cm)

WIDTH

  • Tractor Only (Outside Tire): 38.5 in (98 cm)
  • Tractor with M48 deck: 49 in (125 cm)

HEIGHT

  • Tractor: 39.5 in (100 cm)

WEIGHT

  • Tractor Only: 606 lbs (275 kg)
  • Tractor with M48 deck: 812 lbs (385 kg)

Downloads

Manuals

Released Class Model Type Model S/N Range Manual P/N Download
01/05/2026 Model-B B27i Parts 194280 - AND ON 4000-49 PDF
02/07/2025 Model-B B23 Operator's 184730 - AND ON 4000-48 PDF
12/19/2024 Model-B B23 Parts 184730 - AND ON 4000-47 PDF
12/11/2024 Model-B B27i Operator's 184730 - AND ON 4000-46 PDF
11/25/2024 Model-B B27i Parts 184730 - 194279 4000-45 PDF
07/13/2023 Model-B B23 Parts 178742 - 184729 4000-43 PDF
07/13/2023 Model-B B23 Operator's 178742 - 184729 4000-44 PDF
05/25/2023 Model-B B27i Operator's 178742 - 184729 4000-42 PDF
05/01/2023 Model-B B27i Parts 178742 - 184729 4000-41 PDF
04/20/2022 Model-B B23 Parts 172949 - 178741 4000-40 PDF
03/22/2022 Model-B B23 Operator's 172949 - 178741 4000-39 PDF
01/04/2022 Model-B B27i Parts 172977 - 178741 4000-38 PDF
12/22/2021 Model-B B27i Operator's 172977 - 178741 4000-36 PDF
12/08/2021 Model-B B27i Parts 165084 - 172976 4000-37 PDF
04/26/2021 Model-B B23 Operator's 169308 - 172948 4000-35 PDF
04/23/2021 Model-B B23 Parts 169308 - 172948 4000-34 PDF
08/27/2020 Model-B B18 Operator's 161000 - 166214 4000-32 PDF
08/27/2020 Model-B B19 Operator's 161698 - 164558 4000-33 PDF
04/23/2020 Model-B B27i Parts 162292 - 165083 4000-27 PDF
04/01/2020 Model-B B27i Operator's 162292 - 172976 4000-28 PDF
03/31/2020 Model-B B18 Parts 157301 - 166214 4000-31 PDF
03/26/2020 Model-B B19 Parts 152272 - 164558 4000-30 PDF
02/05/2020 Model-B B23i Parts 149239 - 163226 4000-29 PDF
06/25/2019 Model-B B18 Operator's 151820 - 161000 4000-24 PDF
05/23/2019 Model-B B19 Operator's 155209 - 161697 4000-25 PDF
12/14/2018 Model-B B18 Parts 151820 - 157300 4000-26 PDF
09/25/2018 Model-B B23i Operator's 154037 - 163226 4000-23 PDF
02/16/2018 Model-B B19 Parts 149239 - 152271 4000-22 PDF
02/07/2018 Model-B B23i Parts 146779 - 149238 4000-21 PDF
11/22/2017 Model-B B19 Operator's 134381 - 155208 4000-19 PDF
11/10/2017 Model-B B18 Operator's 133002- 151819 4000-18 PDF
10/09/2017 Model-B B18 Parts 133002 - 151819 4000-20 PDF
12/15/2016 Model-B B19 Parts 137381 - 149238 4000-16 PDF
01/14/2016 Model-B B23i Operator's 124998 - 133533 4000-14 PDF
12/21/2015 Model-B B25p Operator's 133534 - AND ON 4000-13 PDF
12/21/2015 Model-B B18 Operator's 125166 - 133001 4000-11 PDF
04/01/2015 Model-B B23i Parts 133534 - 146778 4000-15 PDF
04/01/2015 Model-B B23i Operator's 133534 - 154036 4000-17 PDF
04/01/2015 Model-B B25p Operator's 130000 - 133534 4000-9 PDF
02/07/2014 Model-B B18 Parts 125166 - 133001 4000-10 PDF
10/23/2013 Model-B B25p Parts 126729 - AND ON 4000-8 PDF
10/01/2013 Model-B B19 Parts 124800 - 137380 4000-7 PDF
10/01/2013 Model-B B19 Operator's 124800 - 137380 4000-12 PDF
4/20/2012 Model-B MBK23 Operator's 116942 - 124997 4000-5 PDF
4/20/2012 Model-B MBK23 Parts 116942 - 124997 4000-6 PDF
04/01/2010 Model-B MB Operator's & Parts 104436 - 124799 4000-4 PDF
09/01/2008 Model-B MB Operator's & Parts 96431 - 104435 4000-3S PDF
09/01/2006 Model-B MB Operator's & Parts 85248 - 96430 4000-3 PDF
12/15/2005 Model-B MB Operator's & Parts 79432 - 85247 4000-2 PDF
10/01/2004 Model-B MB Operator's & Parts 68441 - 79431 4000-1 PDF
