Model C19

Superior productivity and profitability

C19 Model Overview

A durable design combined with a proven Kohler Command Pro CH620 engine, the C19 provides agility, maneuverability, and high-capacity mowing. It is a popular machine for commercial operators getting started in high-end property maintenance.

Type: Collection
Power: 19 HP
Engine: Kohler
Ideal Application:
Residential Properties, Commercial Properties
Key Attributes: Compact, Agile, Balance
Standard Options: 18 x 8.5-10 Turf Tire
Decks:
Popular Add-ons:
Implement Hitch
48" Dozer Blade
Single-Stage Snowblower
Soft Cab

* MODELS MAY BE SHOWN WITH OPTIONAL EQUIPMENT. APPLICABLE FREIGHT, SETUP, AND TAXES NOT INCLUDED. ADDITIONAL DELIVERY FEES APPLY FOR US TERRITORIES AND STATES OUTSIDE OF THE CONTINENTAL US. OPTIONS AND ACCESSORIES EXTRA. PRICES SUBJECT TO CHANGE WITHOUT NOTICE. MSRP SHOWN IN US DOLLAR ARE FOR DOMESTIC USE ONLY. SEE LOCAL DEALER FOR COMPLETE PRICING AND AVAILABLE OFFERS.

C19-play-button




Ready to try one for yourself?
Get a Demo

Features

Fully Synthetic Oil

Kohler Pro 300-Hour Extended Life Oil and Filter Equipped

kohler-oil-bottles-filter-set-GRAY

Transmission Oil
Performance System

Enhanced drivetrain protection and performance

Key Attributes - Compact

Compact

Get Into and Out of Tight Spots

Key Attributes - Agile

Agile

Be Responsive, Be Profitable

C19 Comparison



  C19 C19i T23 B19
Engine Kohler CH620 Kohler ECH630 Kohler CH680 Kohler CH620
Fuel System Carb EFI Carb Carb
Cooling System Air Air Air Air
Displacement 674 cc (41.1 cu. in.) 694 cc (42.4 cu. in.) 674 cc (41.1 cu. in.) 674 cc (41.1 cu. in.)
Max Power 19 HP @ 3600 RPM 19 HP @ 3600 RPM 22.5 HP @ 3600 RPM 19 HP @ 3600 RPM
Max Torque 35 ft-lbs 34.2 ft-lbs 36.6 ft-lbs 35 ft-lbs
Fuel Capacity 4 gal (15.1 liter) 4 gal (15.1 liter) 4.7 gal (17.8 liter) 4 gal (15.1 liter)
Grass Handling Collection Collection Collection Non-Collection
Seat Standard Seat Standard Seat Comfort Seat Standard Seat
Tires 18 x 8.50-10 Turf Tire 18 x 8.50-10 Turf Tire 18 x 9.50-8 Turf Tire 18 x 8.5-10 Turf Tire
Weight 762 lbs (346 kg)[1]
953 lbs (432 kg)[2]		 760 lbs (345 kg)[1]
951 lbs (431 kg)[2]		 820 lbs (372 kg)[1]
1039 lbs (471 kg)[3]		 583 lbs (264 kg)[1]
789 lbs (358 kg)[4]
Dimensions 47.5 in (121 cm)" H x 43.25 in (110 cm)" W x 89.25 in (237 cm)" L[2] 47.5 in (121 cm)" H x 43.25 in (110 cm)" W x 89.25 in (237 cm)" L[2] 50 in (127 cm)" H x 44.5 in (113 cm)" W x 93.25 in (237 cm)" L[3] 39.5 in (100 cm)" H x 49 in (125 cm)" W x 90.75 in (230 cm)" L[4]

[1] Tractor only. [2] Tractor with C42 deck. [3] Tractor with C48 deck. [4] Tractor with M48 deck.

Own A C19

New Call-to-action
Request A Demo
Download Brochure
Download Brochure
New Call-to-action
Calculate Productivity Savings

Warranty

2YEARSentire tractor
3YEARSor 3000 hours on drive system*
3YEARSengine
LEARN MORE *Gear Axle Assembly, Hydrostatic Transmissions for C, D, T and Hydrostatic Transaxles for B, H, S, R and C23i

Video



Brief



Introduction



In-Depth



Feature: Compact



Feature: Leaf Cleanup



Feature: Snow Removal



Inside the Grass Handling System

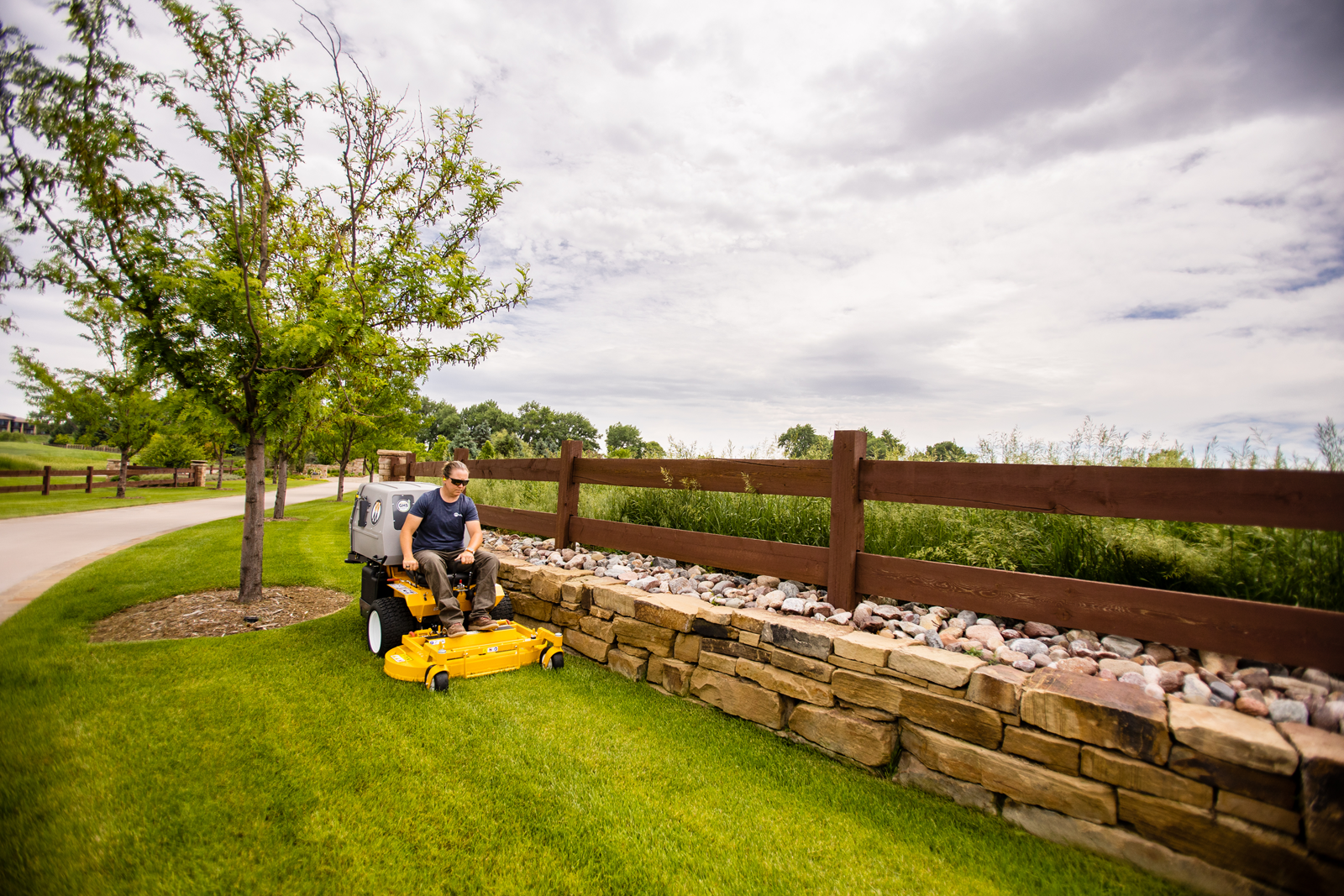

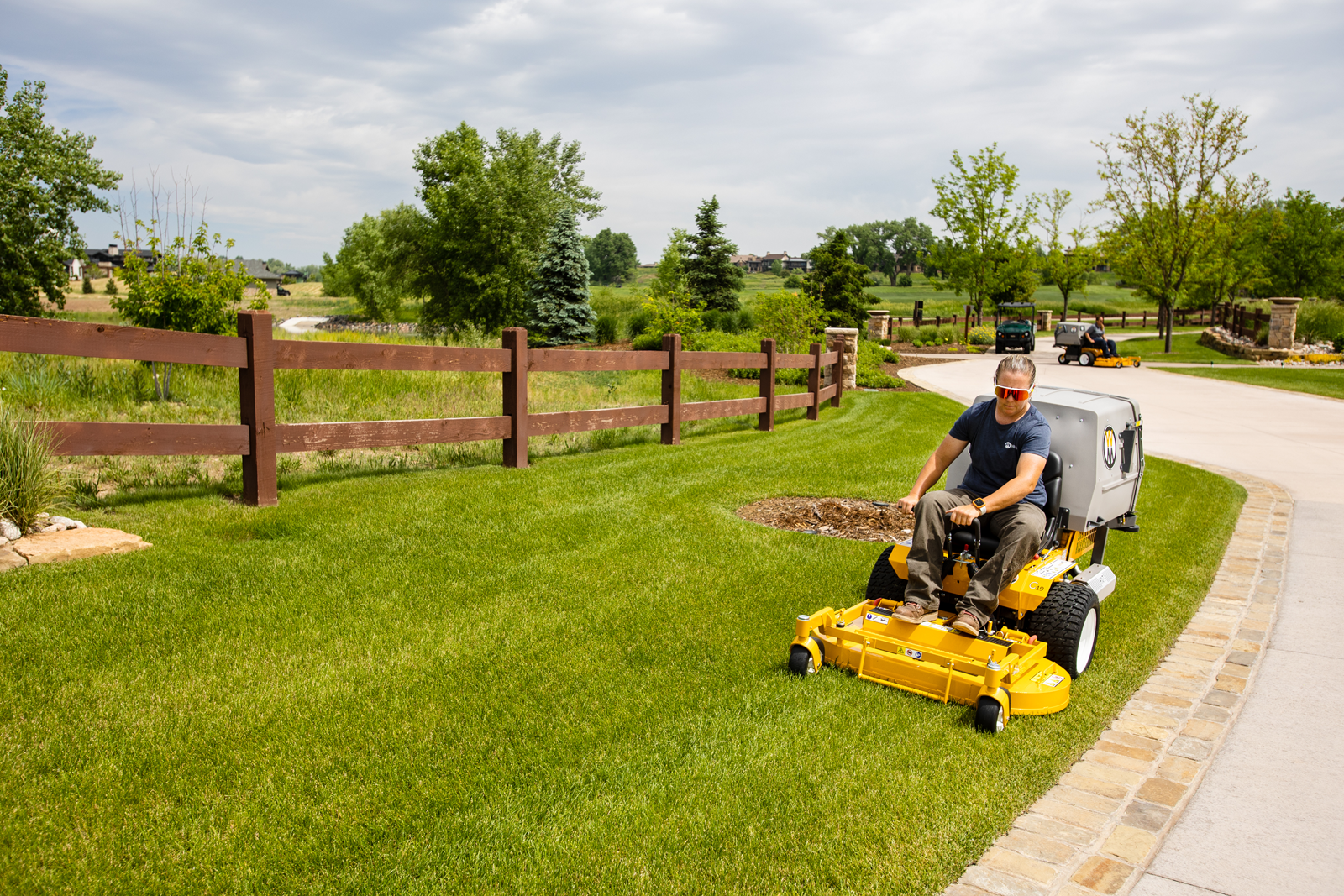

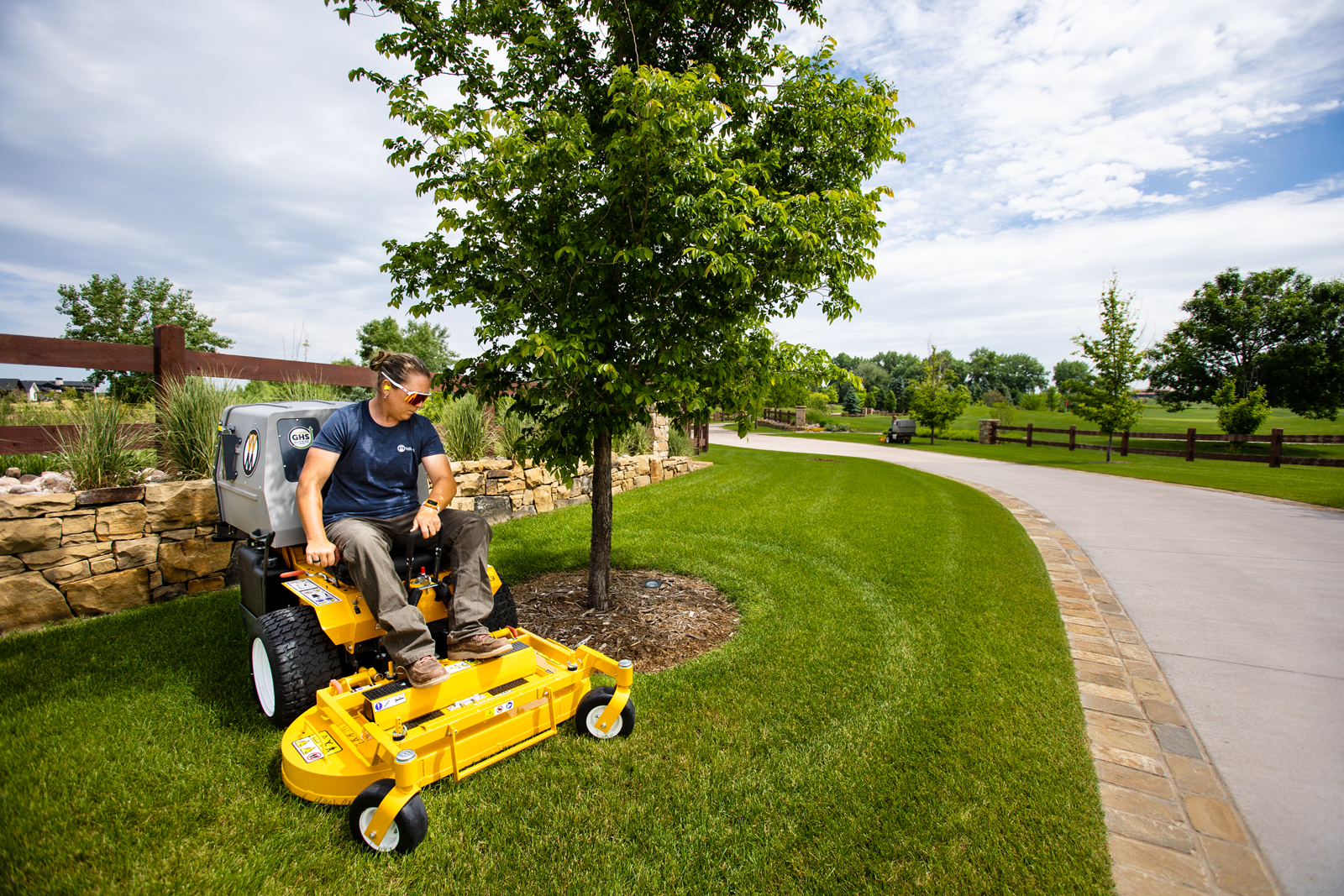

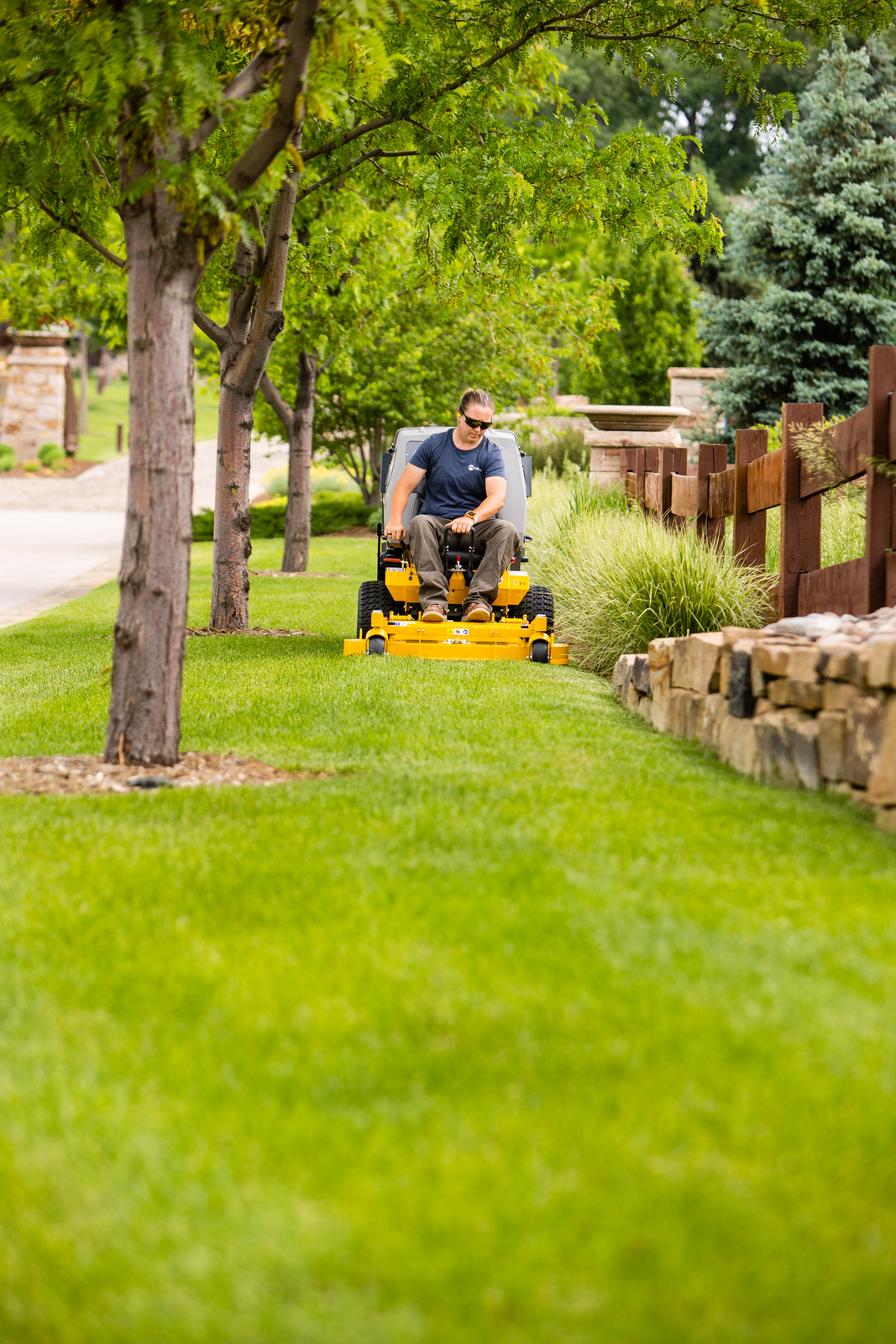

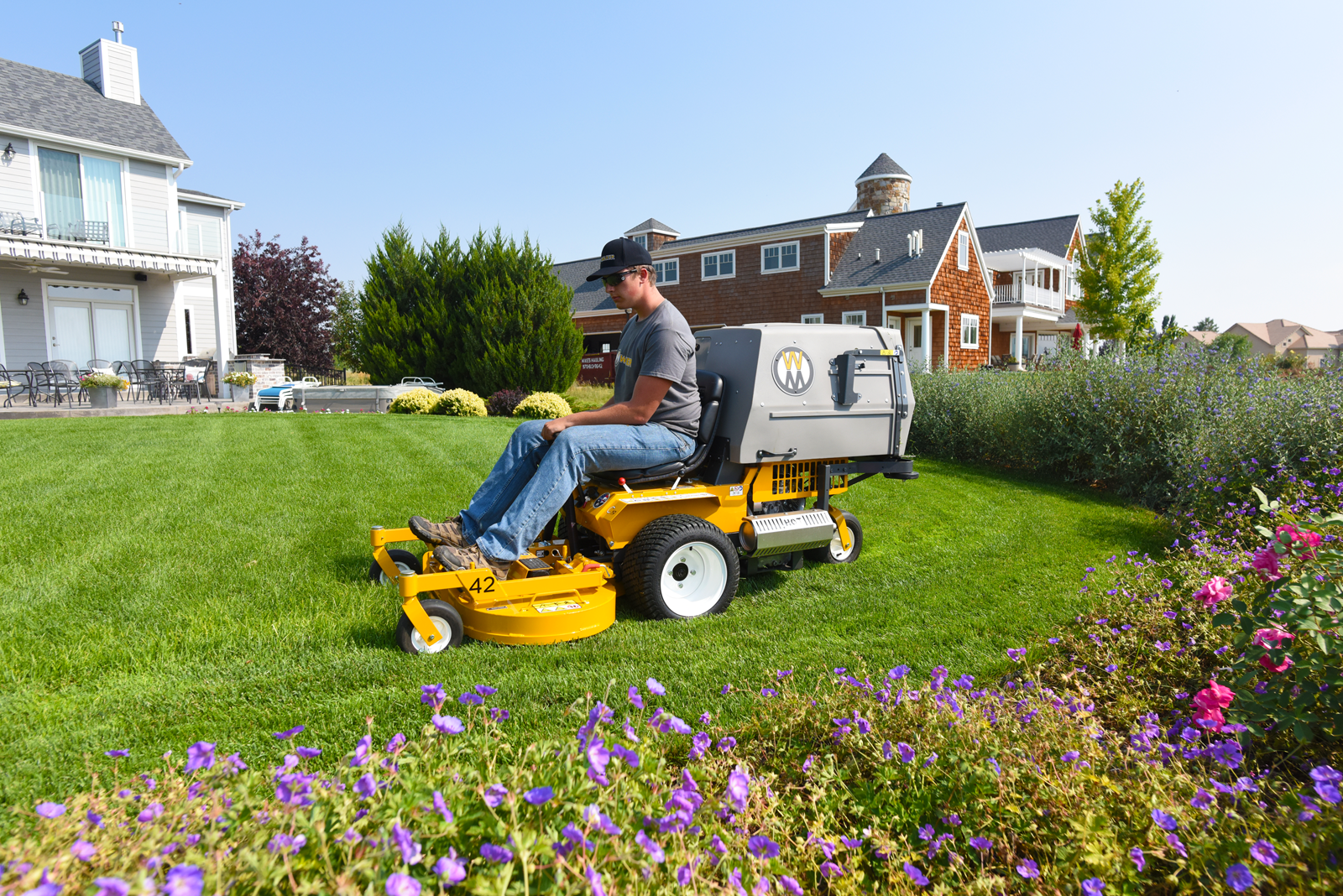

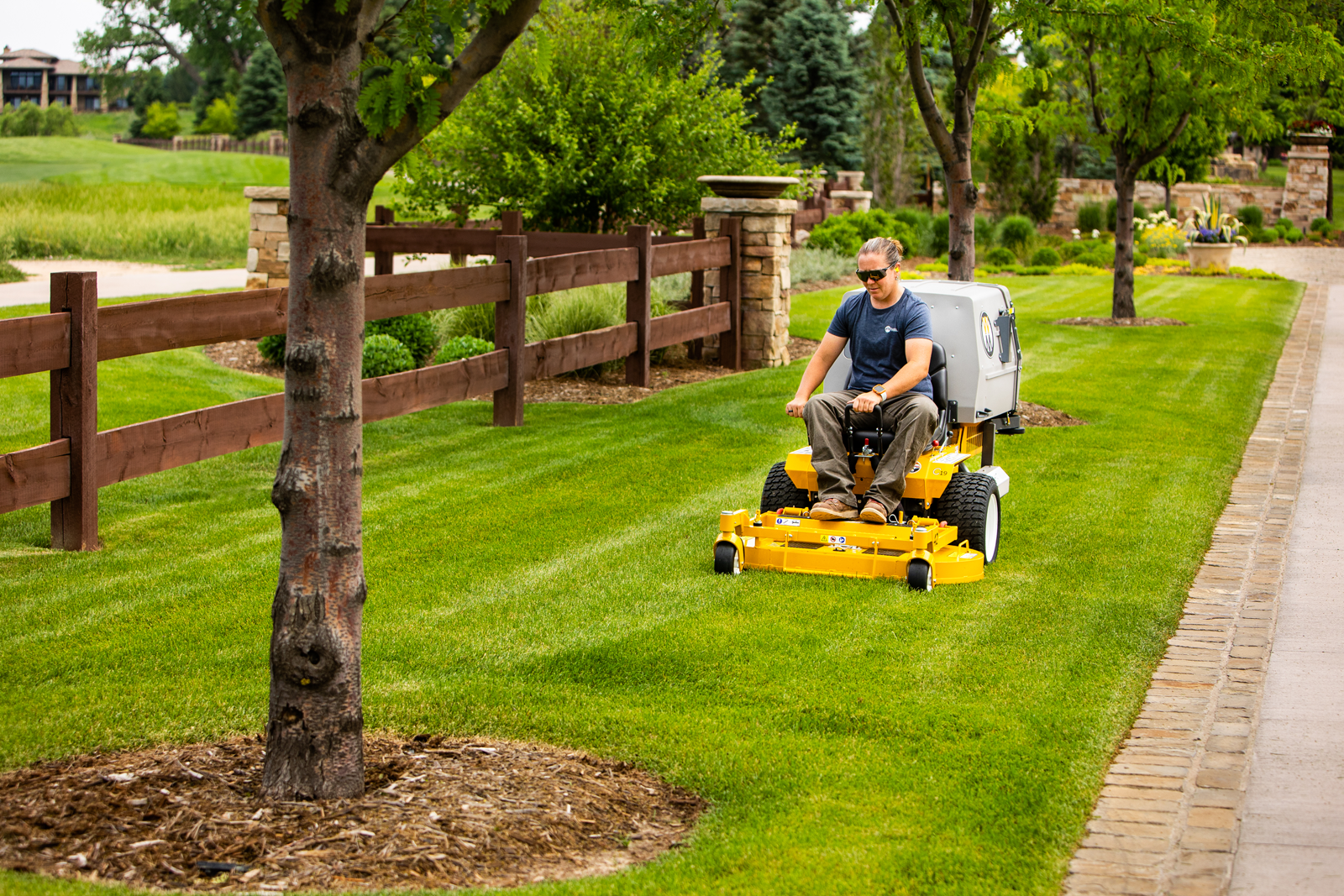

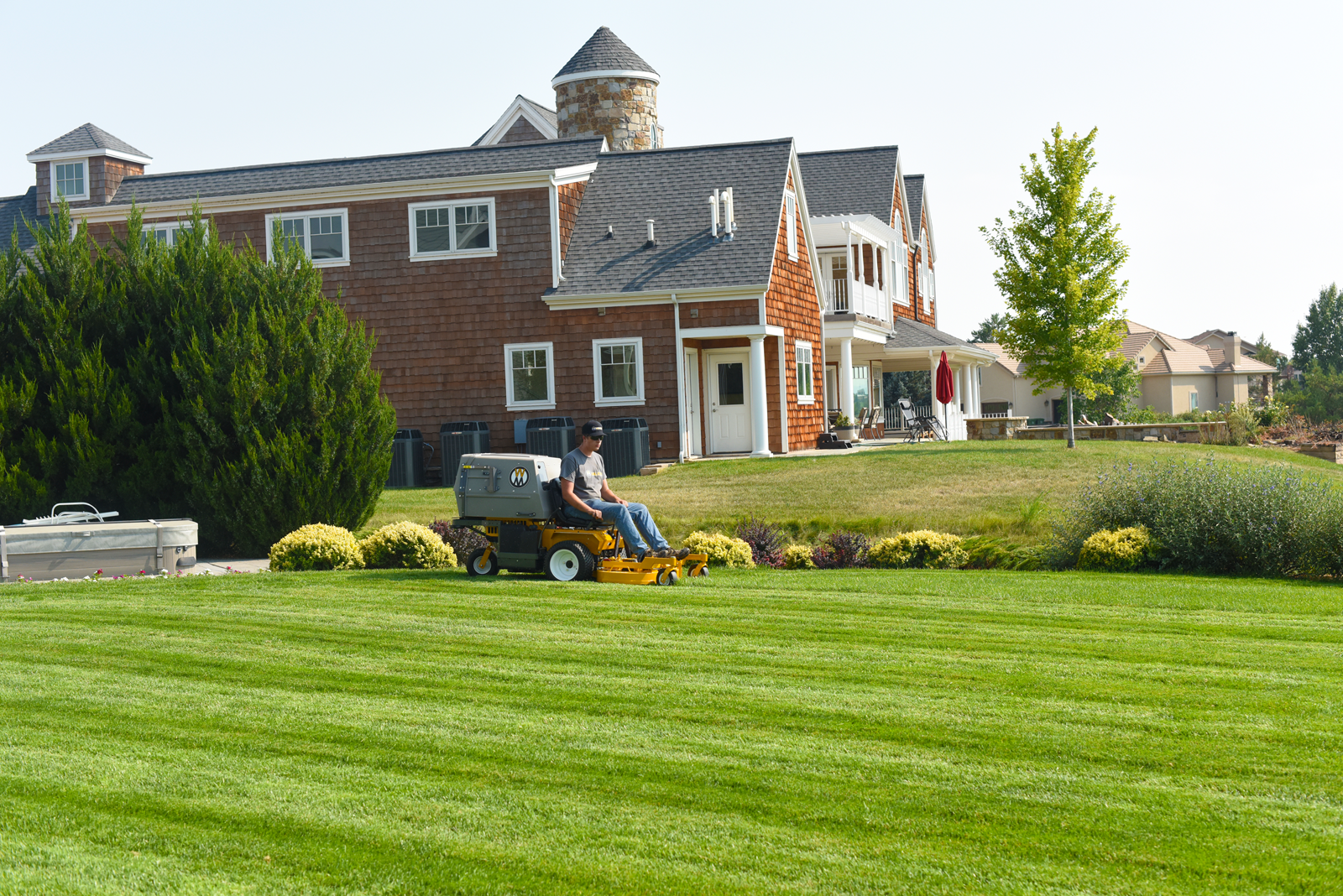

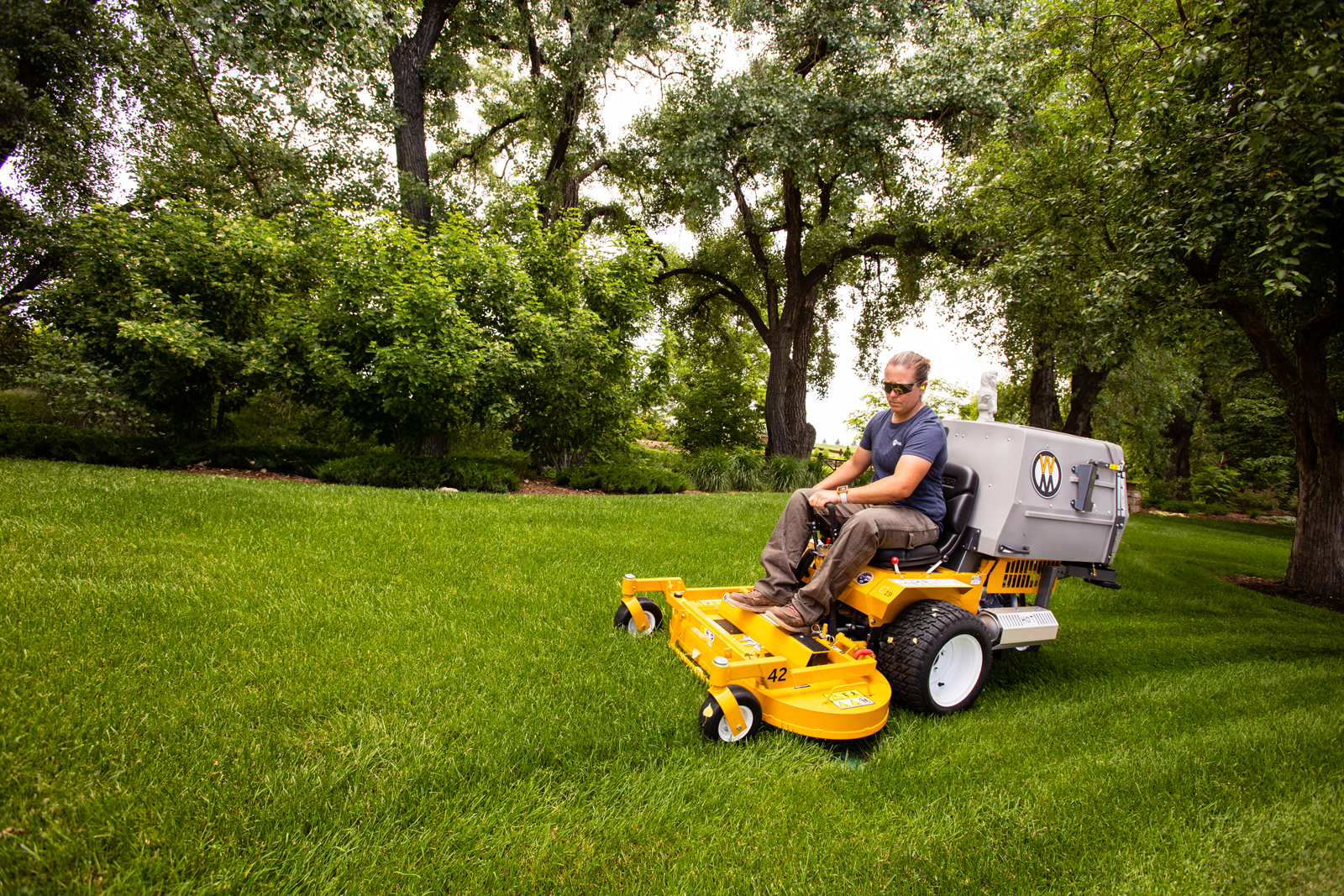

Gallery

C19i Studio 1
C19i Studio 2
C19i Studio 3
C19i Studio 4
C19i Studio 5
C19i Studio 6
C19i Studio 7
C19i Studio 8
C19i Studio 9
C19i Studio 10
C19i Studio 11
C19i Studio 12
C19i Action 1
C19i Action 2
C19i Action 3
C19i Action 4
C19i Action 5
C19i Action 6
C19i Action 1
C19i Action 1
C19i Action 1
C19i Action 1
C19i Action 1
C19i Action 1

Specifications

Engine

Manufacturer: Kohler

Model: Command Pro® CH620

Displacement: 674 cc (41.1 cu. in.)

Max Power: 19 HP @ 3600 RPM

Max Torque: 35 ft-lbs

Cooling System: Air

Fuel: Gasoline (unleaded - 87 octane; 10% ethanol maximum)

Fuel Capacity: 4 gal (15.1 liter)

Electrical

Battery: 12V, 35AH, 300CCA

Charging System: Flywheel Alternator

Charging Output: 15 Amp DC (Regulated)

Transmission

Manufacturer/Model: Eaton Model 7 transmission with ductile cast iron final drive, Dual Hydrostatic; each wheel independently driven

Steering: Hand Lever Control, Individual Wheel

Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position

Parking Brake: Mechanical Pin Lock in Transmission Gear

Forward MPH (km/h): 0-6.5 MPH (0-10.5 km/h) Infinitely Variable

Neutral: Transmission Release by Manual Dump Valve

Blade Drive

PTO Shaft: Quick Disconnect Splined Shaft with two high speed U-joints

Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake

Grass Handling

Blower: 10.5 in diameter, Three-Blade Paddle Wheel

Max. Blower RPM: 4000 RPM

Grass Catcher Capacity: 65 Gal / 7.0 Bu / 246 L or 93 Gal / 10.0 Bu / 352 L

Full Signal: Grass-Pak® full signal alerts operator when catcher box is full

Powerfil®: Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min

Deck

Recommended Cut Width: Collection: 36 to 48 in. (91 to 122 cm), Side Discharge: 36 to 62 in. (91 to 157 cm), Mulch: 36 to 52 in. (91 to 132 cm)

Cutting Height: 1 to 4 in (2.5 to 10 cm) or 1.5 to 4.5 in (4 to 11.5 cm) (DS52 and DS62 Belt Driven SD Decks Only)

Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs

Tires

Drive: 18 x 8.50-10 (Pneumatic 4-Ply)

Tailwheel: 13 x 6.50-6

Deck Caster: 8 x 3.00-4 Semi-Pneumatic (Standard) 8 x 3.00-4 Pneumatic 4-Ply (Optional)

Size & Weight

LENGTH

  • Tractor Only: 64.5 in (164 cm)
  • Tractor with C42 deck: 89.25 in (237 cm)
  • Tractor with deck tilted: 77 in (196 cm)
  • Tractor wheel base: 42.25 in (107 cm)

HEIGHT

  • Tractor: 47.5 in (121 cm)

WIDTH

  • Tractor Only (Outside Tire): 37.75 in (96 cm)
  • Tractor with C42 deck: 43.25 in (110 cm)

WEIGHT

  • Tractor Only: 762 lbs (346 kg)
  • Tractor with C42 deck: 953 lbs (432 kg)

Downloads

Manuals

Released Class Model Type Model S/N Range Manual P/N Download
06/15/2023 Model-C C23i Parts 181528 - AND ON 6000-35 PDF
05/17/2023 Model-C C23i Operator's 181528 - AND ON 6000-36 PDF
02/09/2023 Model-C C19 Operator's 170773 - AND ON 6000-40 PDF
02/07/2023 Model-C C19 Parts 170773 - AND ON 6000-39 PDF
01/25/2023 Model-C C19i Operator's 170773 - AND ON 6000-38 PDF
01/23/2023 Model-C C19i Parts 170773 - AND ON 6000-37 PDF
06/01/2021 Model-C C19 Operator's 168757 - 170772 6000-31 PDF
06/01/2021 Model-C C19i Operator's 168631 - 170772 6000-33 PDF
05/18/2021 Model-C C19 Parts 168757 - 170772 6000-32 PDF
05/18/2021 Model-C C19i Parts 168631 - 170772 6000-34 PDF
08/27/2020 Model-C C19i Operator's 159344 - 168630 6000-28 PDF
07/01/2020 Model-C C19 Operator's 159266 - 168756 6000-27 PDF
06/22/2020 Model-C C19 Parts 151990 - 168756 6000-29 PDF
06/16/2020 Model-C C19i Parts 154995 - 168630 6000-30 PDF
05/16/2019 Model-C C19 Operator's 154743 - 159265 6000-26 PDF
05/16/2019 Model-C C19i Operator's 154995 - 159343 6000-25 PDF
05/08/2018 Model-C C19 Parts 147167 - 151989 6000-24 PDF
04/12/2018 Model-C C19i Parts 147791 - 154994 6000-23 PDF
10/17/2017 Model-C C19 Operator's 140307 - 154742 6000-21 PDF
10/11/2017 Model-C C19i Operator's 134494 - 154994 6000-22 PDF
05/05/2016 Model-C C19 Parts 140307 - 147166 6000-20 PDF
09/11/2015 Model-C C19i Operator's 131154 - 134493 6000-19 PDF
05/20/2015 Model-C C19i Parts 134498 - 147790 6000-18 PDF
11/25/2013 Model-C C19 Operator's 125718 - 140306 6000-16 PDF
11/25/2013 Model-C C19 Parts 125718 - 140306 6000-17 PDF
06/15/2010 Model-C MC Parts 100982 - 125717 6000-14 PDF
01/15/2010 Model-C MC Operator's 100982 - 125717 6000-15 PDF
03/01/2007 Model-C MC Operator's 85835 - 100981 6000-13 PDF
09/01/2006 Model-C MC Parts 85835 - 100981 6000-12 PDF
11/01/2004 Model-C MC Parts 66220 - 85834 6000-10 PDF
06/17/2004 Model-C MC Operator's 65903 - 85834 6000-11 PDF
11/01/2003 Model-C MC Parts 60467 - 66219 6000-9 PDF
04/15/2003 Model-C MC Operator's 61061 - 65902 6000-8 PDF
12/01/2000 Model-C MC Parts 49733 - 60466 6000-6 PDF
03/08/1999 Model-C MC Operator's 31040 - 61060 6000-1 PDF
11/05/1997 Model-C MC Parts 31040 - 49732 6000-5 PDF
02/07/1997 Model-C MC Parts 08613 - 31039 6000-2 PDF
12/01/1995 Model-C MC Parts 00000 - 20380 5895-1 PDF
07/01/1991 Model-C MC Operator's 00000 - 20380 5895 PDF
