48 Inch Multi-Deck

48 Inch Multi-Deck

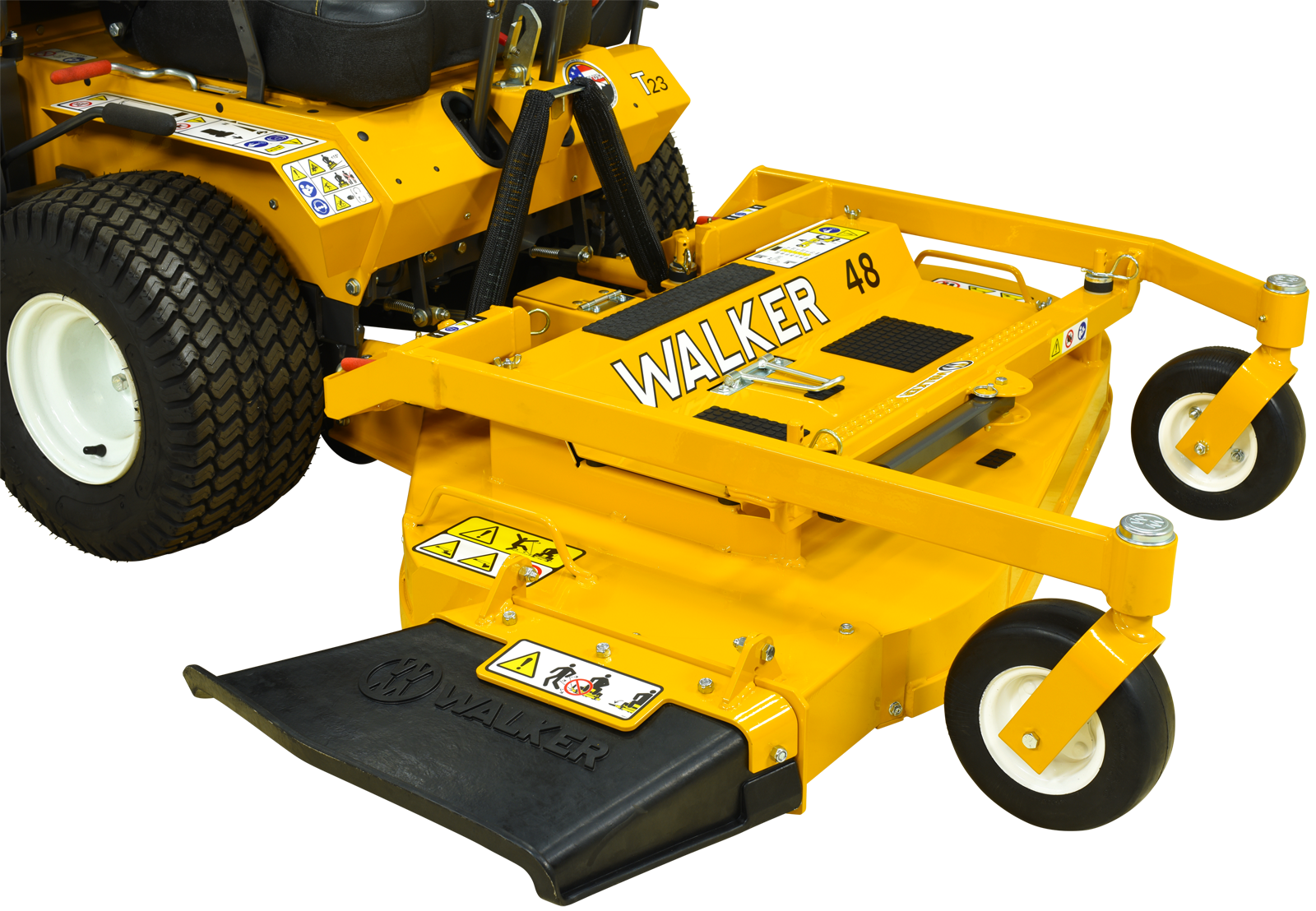

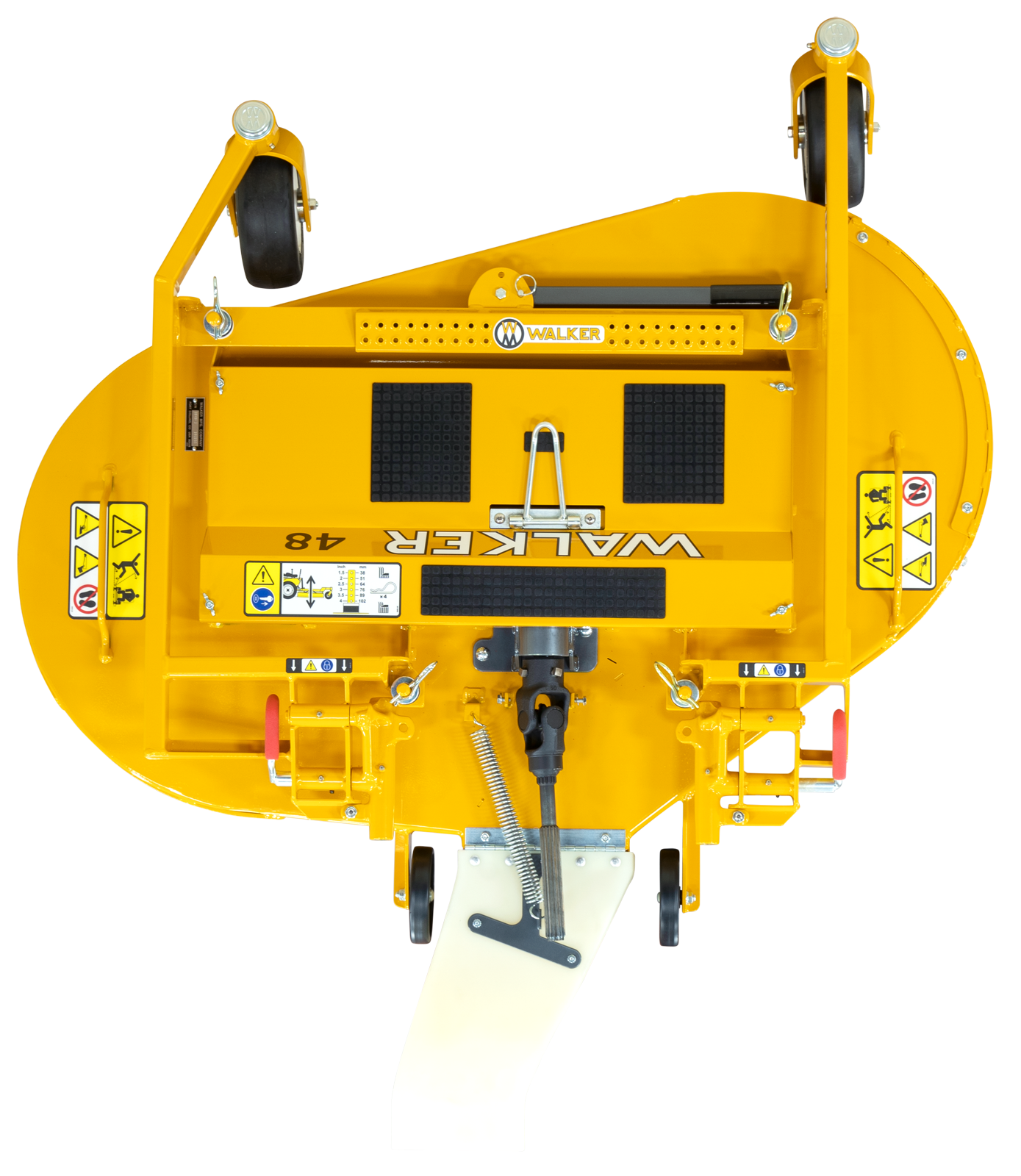

Designed to be a single mower solution for both manicured turf and rougher field-type grass, the Walker Multi-Deck is your way to tackle both collection and side discharge mowing applications. The Multi-Deck allows you to effectively match the deck configuration to varying property types, and grass conditions throughout the growing season. Whether collecting thick, spring turf or side-discharging dryer season grass, the Multi-Deck is an easy and cost effective solution for your unique needs.

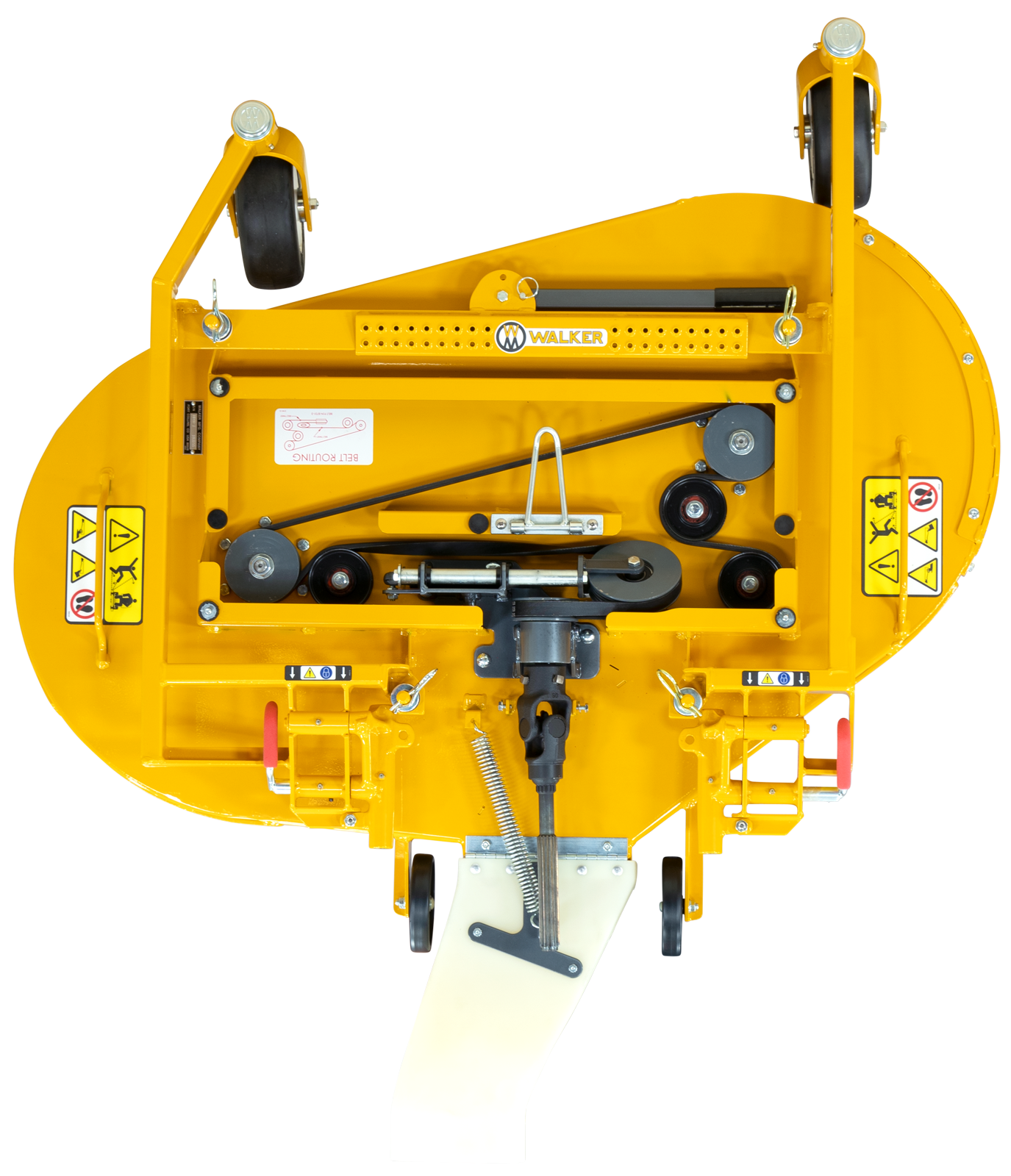

A key feature of the Multi-Deck is the belt drive design which delivers reduced noise, improved durability, and common rotating blades that allow both collection and side-discharge mowing. The unique belt tensioner mechanism utilizes a gas spring dampener for increased belt life, and also provides belt changes without requiring tools.

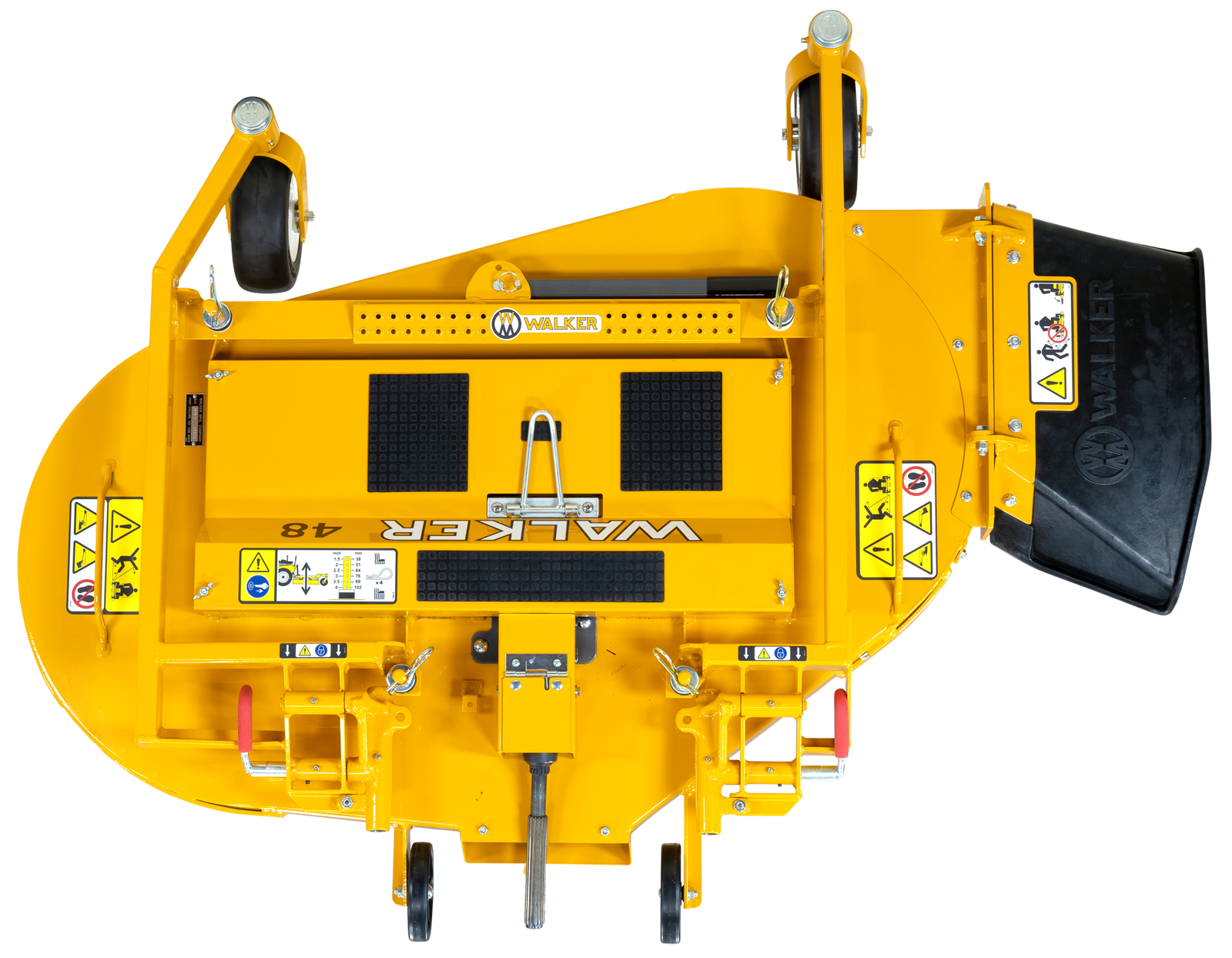

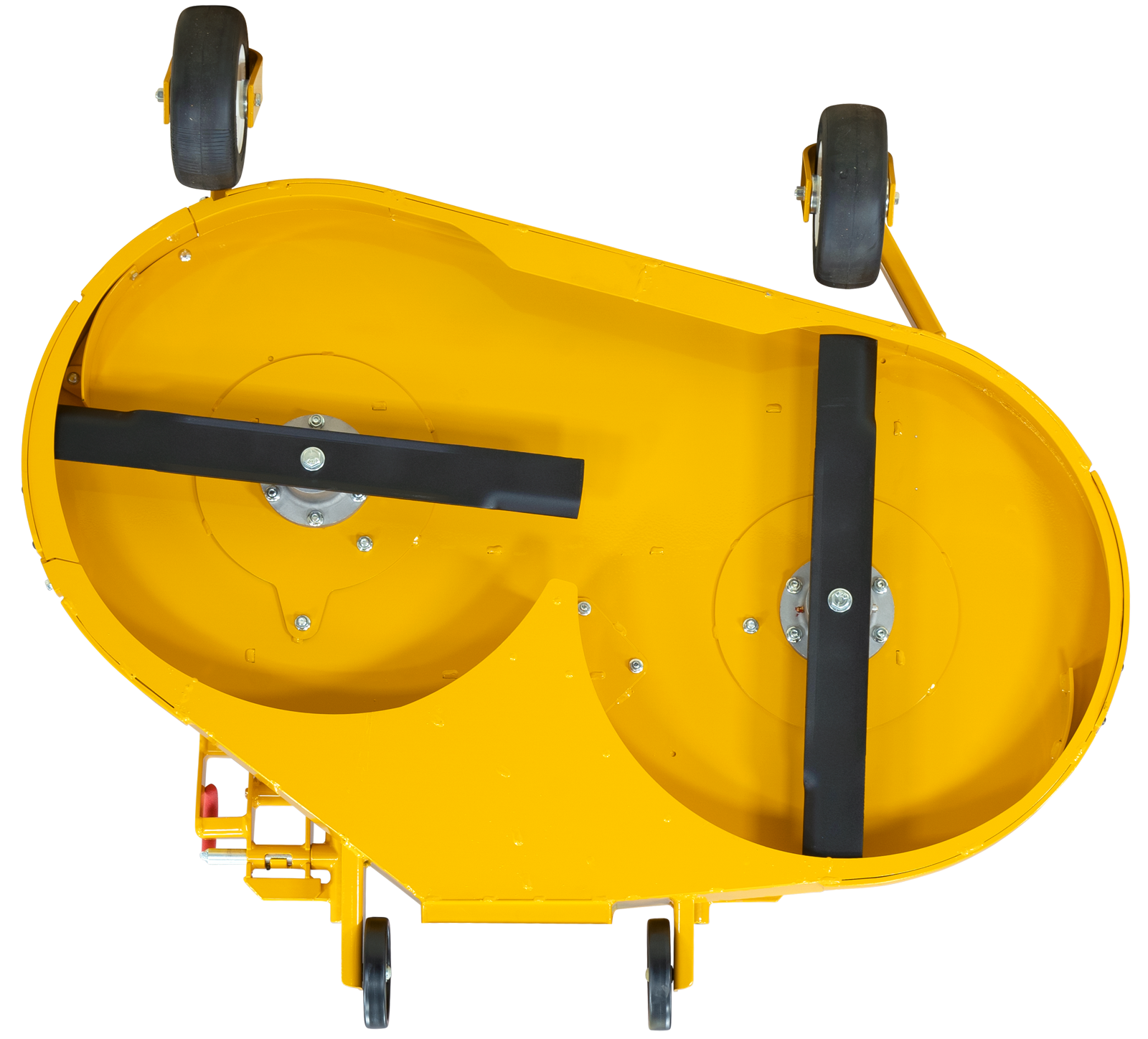

The Multi-Deck's collection capability is impressive, and combined with Walker’s proven Grass Handling System® (GHS), makes grass collection fast, easy, and enjoyable. To convert the deck from collection to discharge, remove the end-cap from the deck housing and install the collection chute baffle and side discharge chute.

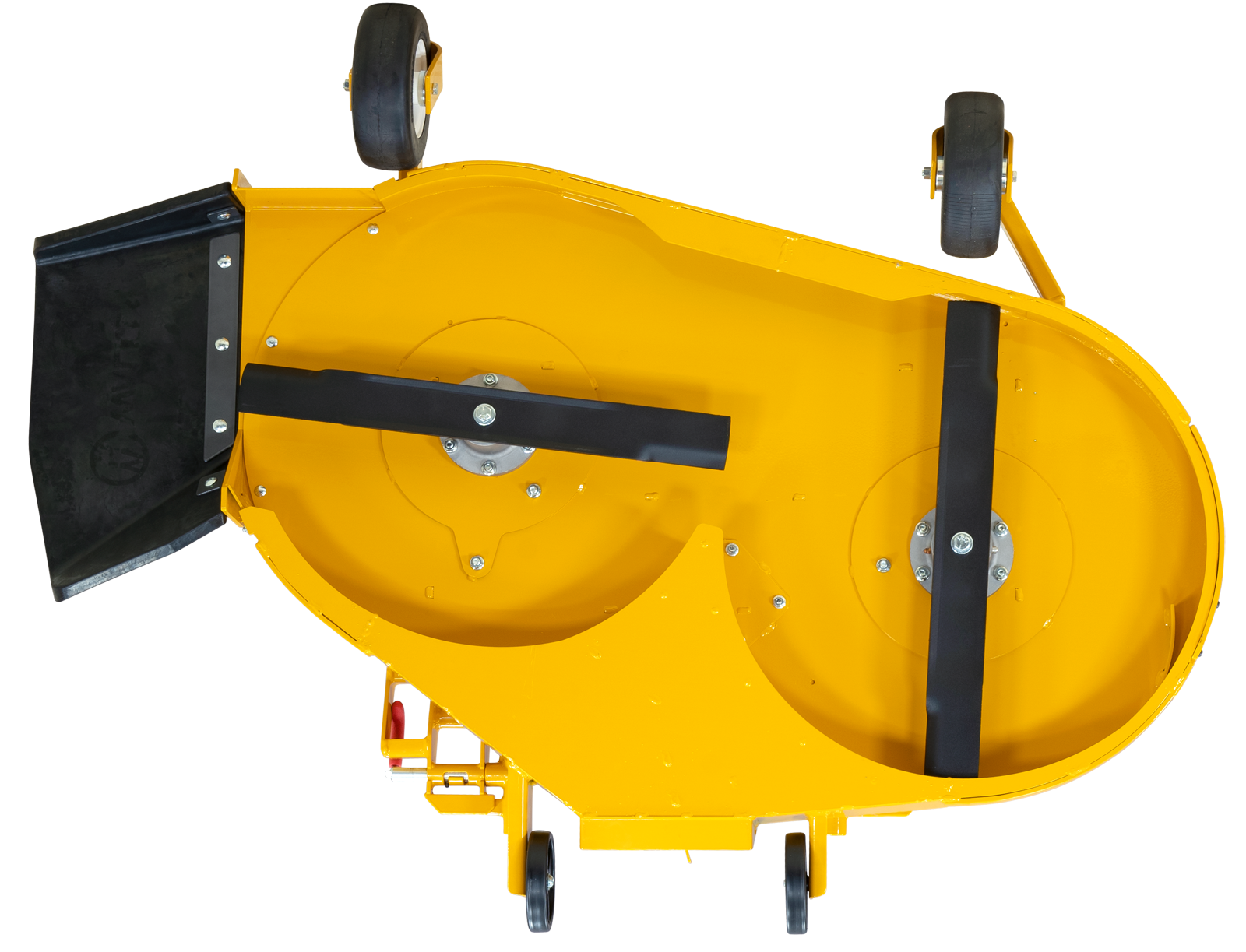

Just like other Walker decks, the underside of the deck housing and blades are accessible with the tilt-up function. The inset position of the left caster tire is aligned with the left mowing blade to optimize cut quality while also enhancing trimming performance on the left side of the mowing deck. The Multi-Deck uses Walker's torsion-flex carrier frame to freely articulate and follow ground contour for a beautiful cut.

Type: Collection, Side Discharge
Part: DU48-3

Cutting Width: 48 in (122 cm)
Blades:
Ideal Application: Versatile, high quality, and durable solution for operators needing a single mower capable of high performance collection with side discharge function.
