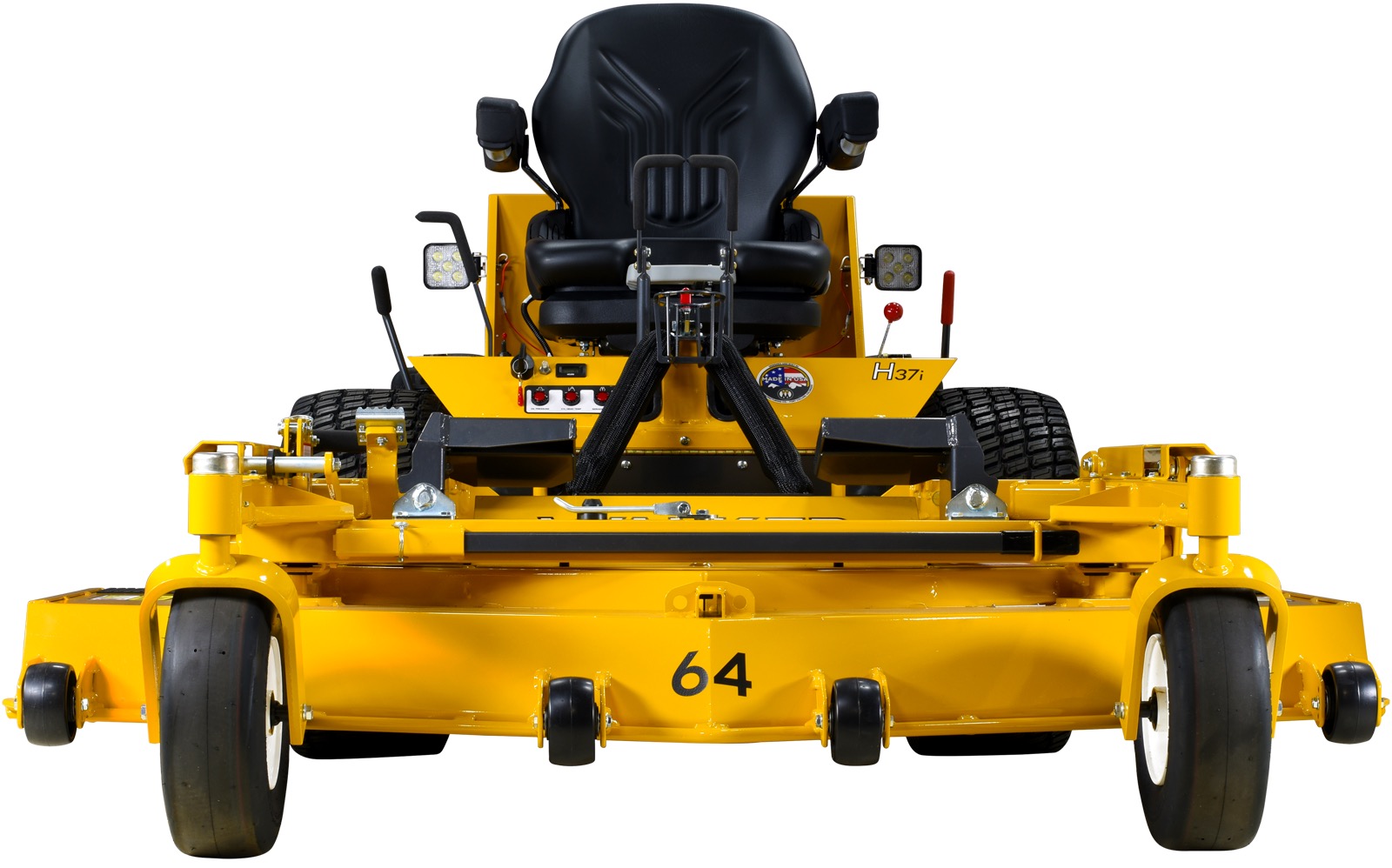

Model H37i

Powerful and Efficient Productivity

H37i Model Overview

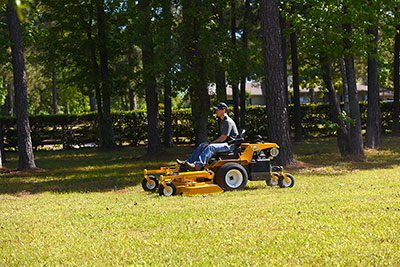

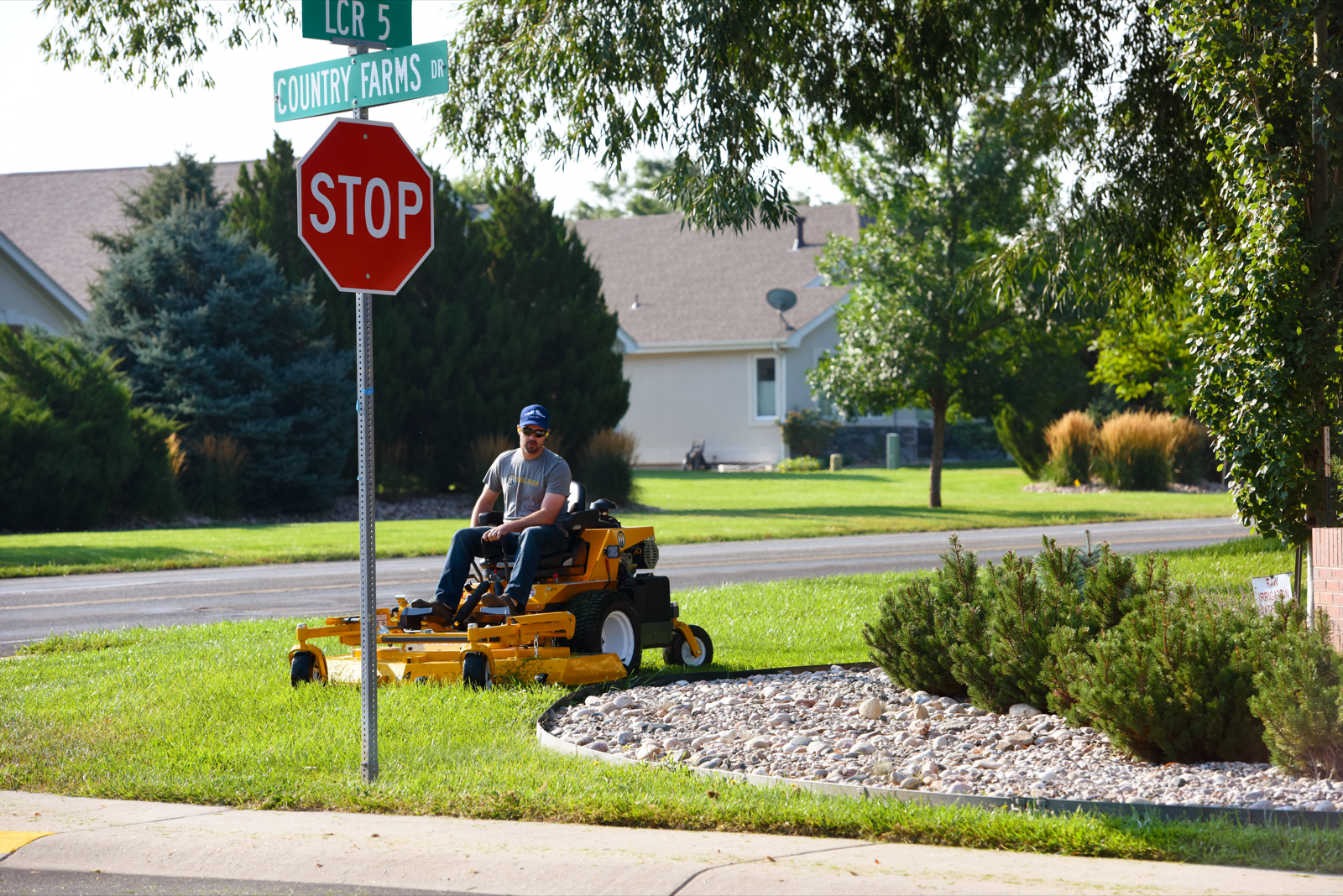

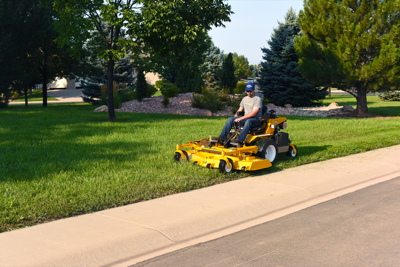

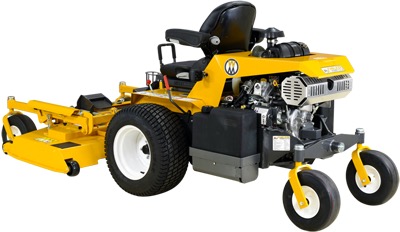

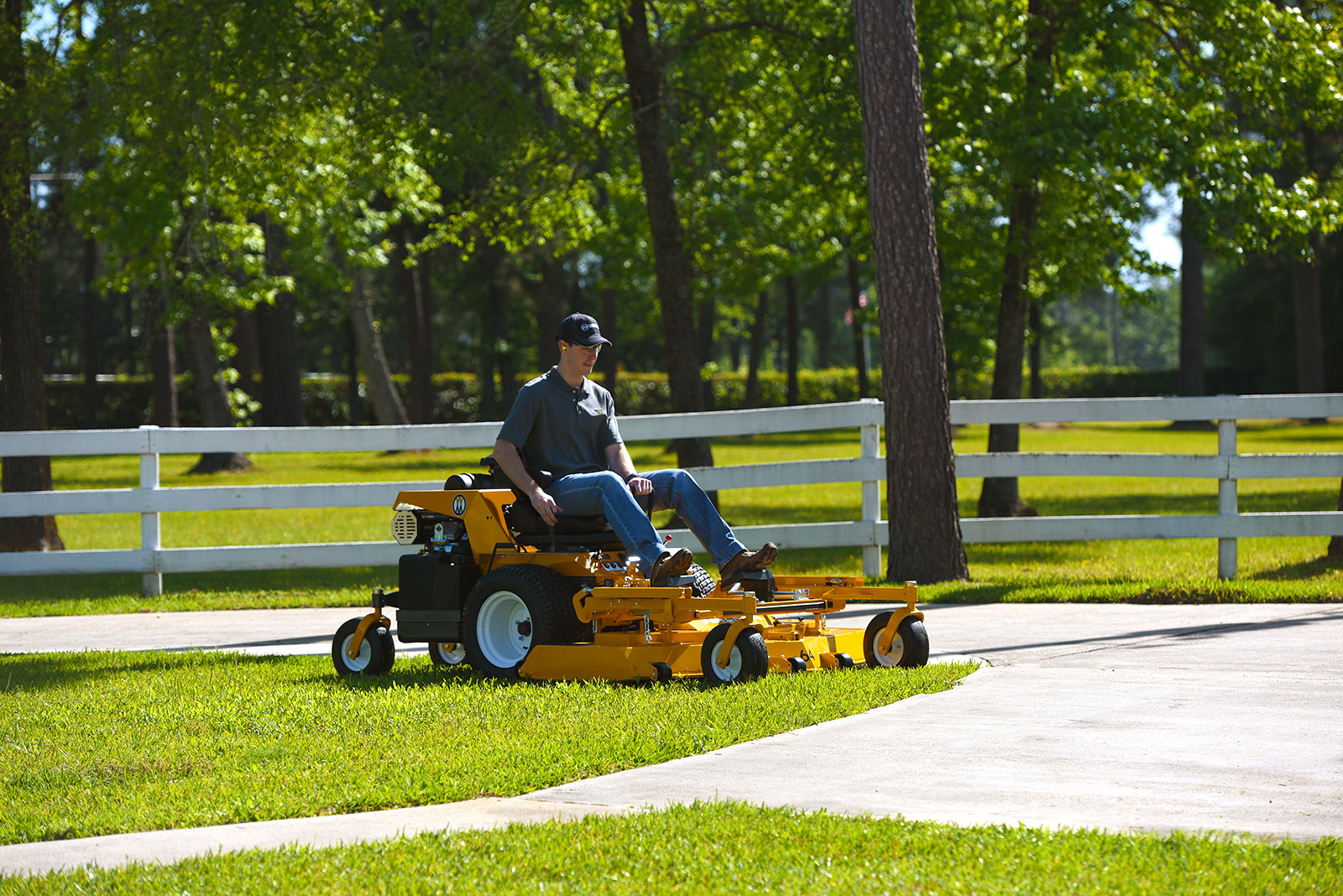

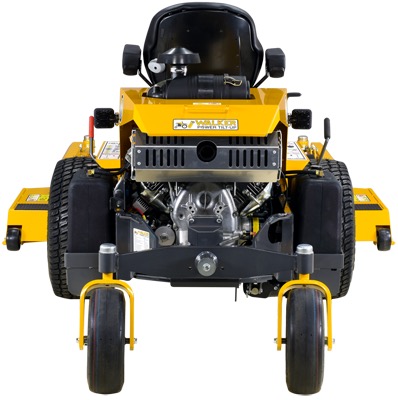

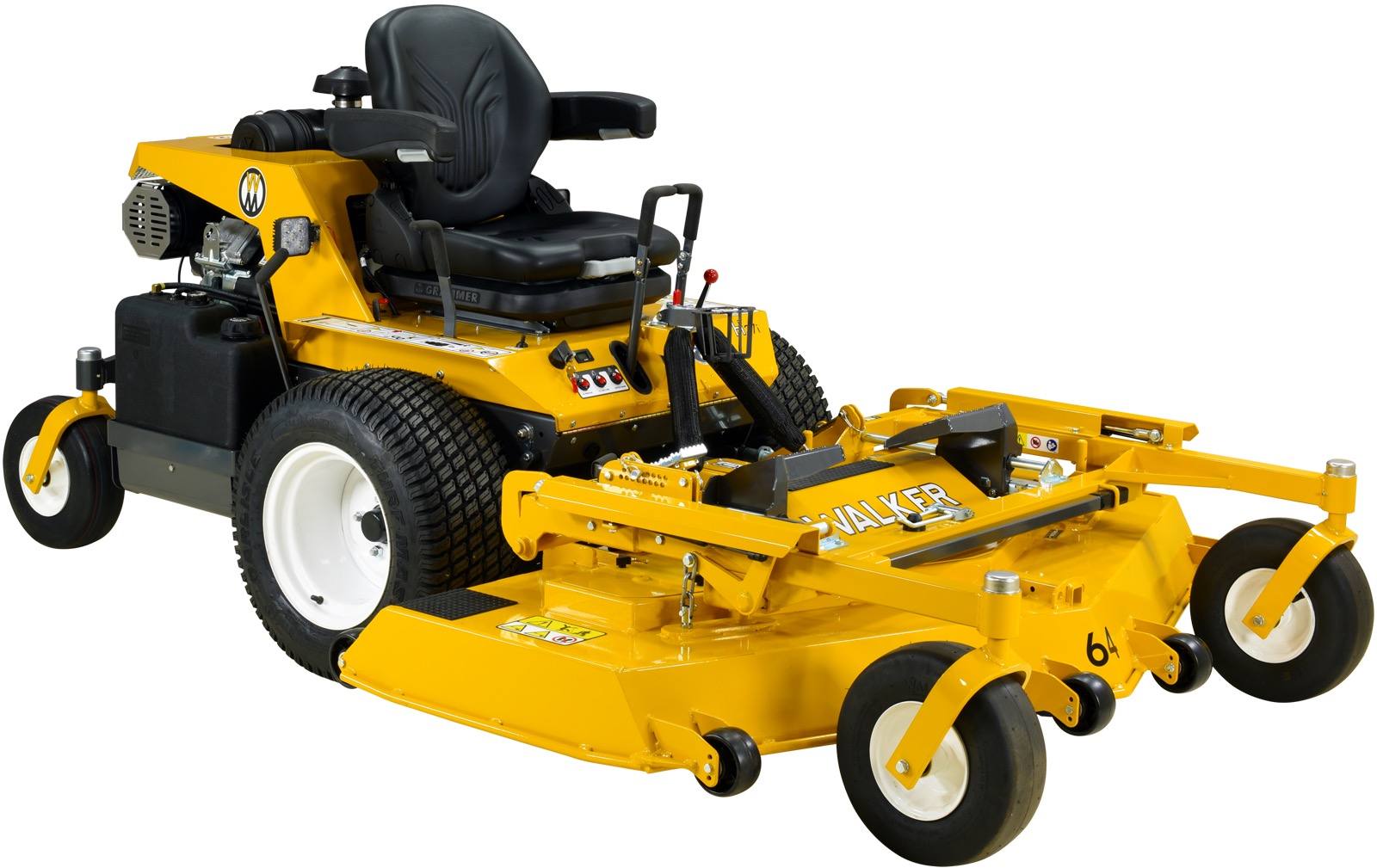

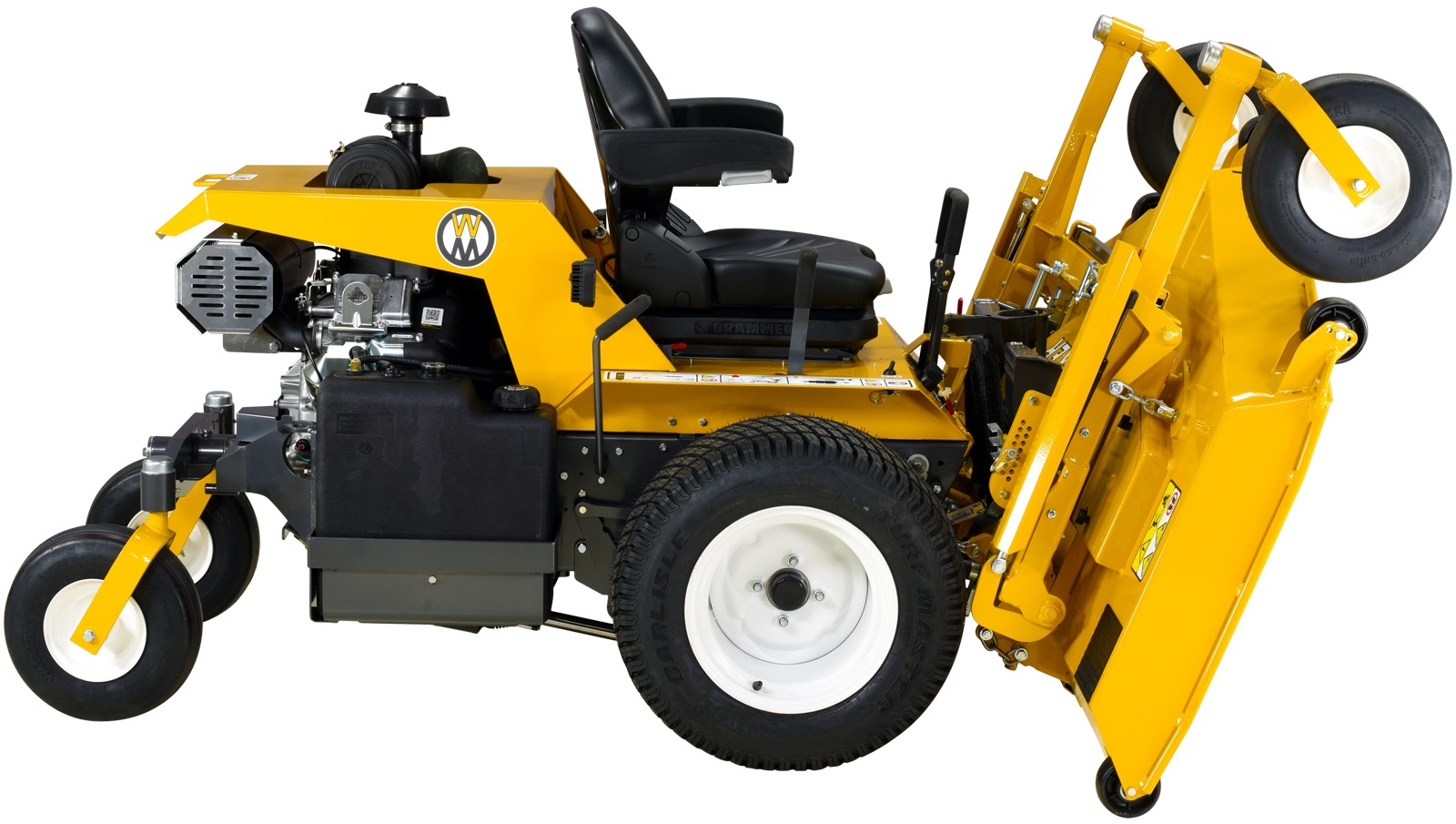

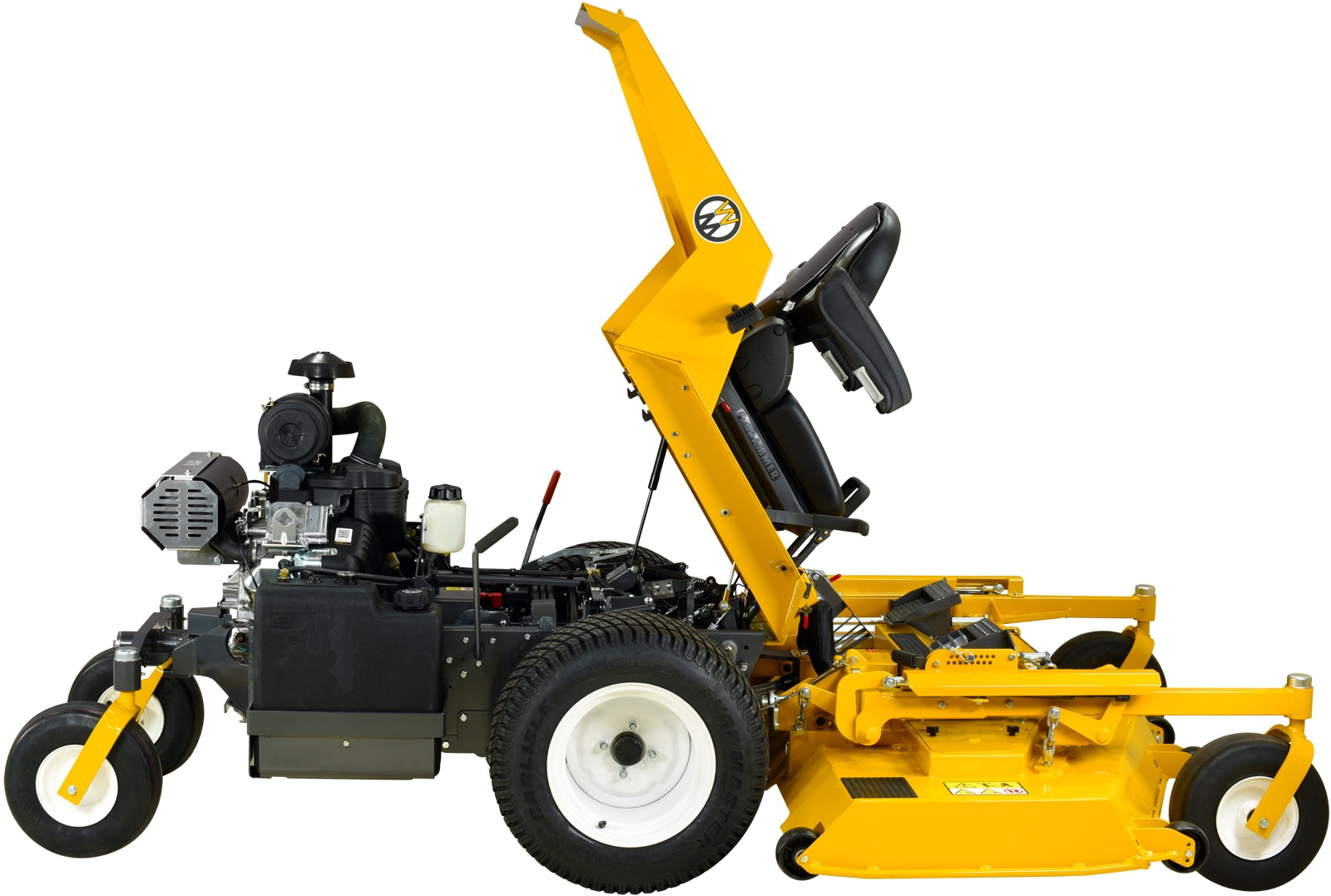

Powered by a 993cc big block Vanguard EFI engine, the H37i is a powerful and efficient machine for the professional user. Its engine with high capacity air cooling system, big 5 inch diameter Donaldson air cleaner, Grammer suspension seat, and fully articulating decks means the H37i can mow complex properties easier, in harsh conditions longer. And, with the optional Model H Power Tilt-Up® deck, maintenance and storage are even easier.

Type: Non-Collection
Power: 37 HP
Engine: Briggs & Stratton Vanguard
Ideal Application:
Commercial, Rural, and Large Properties, Field Cutting
Key Attributes: Powerful, efficient, high production
Standard Options: 22 x 10.5-12 Turf Tire, Suspension Seat

Decks:
Popular Add-ons:
Implement Hitch
50” Two-Stage Snowblower

60” Dozer Blade
Operator Hard Cab


h37i-overview




Ready to try one for yourself?
Get a Demo

Key Attributes

Key Attributes - Balance

Balance

Low Center of Gravity

Discover More

Key Attributes - Agile

Agile

Be Responsive, Be Profitable

Discover More

Key Attributes - Compact

Compact

Get Into and Out of Tight Spots

Discover More

H37i Comparison



  H24d H27i H37i
Engine Kohler KDW1003 Kohler ECH749 Briggs Vanguard Big Block
Fuel System Diesel EFI EFI
Cooling System Liquid & radiator Air Air
Displacement 1028 cc (62.7 cu. in.) cc 747 cc (45.6 cu. in.) cc 993 cc (60.6 cu. in.) cc
Max Power 23.7 HP @ 3600 RPM 26.5 HP @ 3600 RPM 37 HP @ 3650 RPM
Max Torque  36.8 ft-lbs 40 ft-lbs 54 ft-lbs
Fuel Capacity 9.4 gal (35.6 liter) Two Independent 4.7 Gallon Tanks with Selector Valve 9.4 gal (35.6 liter) Two Independent 4.7 Gallon Tanks with Selector Valve 9.4 gal (35.6 liter) Two Independent 4.7 Gallon Tanks with Selector Valve
Seat Suspension Seat Suspension Seat Suspension Seat
Tires 22 x 10.5-12 Turf Tire 22 x 10.5-12 Turf Tire 22 x 10.5-12 Turf Tire
Weight 997 lbs (452 kg)[1]
1434 lbs (650 kg)[2]
748 lbs (340 kg)[1]
1185 lbs (537 kg)[2]
778 lbs (353 kg)[1]
1215 lbs (551 kg)[2]
Dimensions 36.625 in (93 cm)" H* x 66 in (168 cm)" W x 107 in (272 cm)" L[2] 46.5 in (118 cm)" H x 66 in (168 cm)" W x 107 in (272 cm)" L[2] 46.5 in (118.1 cm)" H x 66 in (168 cm)" W x 108 in (274.3 cm)" L[2]

[1] Tractor only. [2] Tractor with R64 deck. * ROPS folded.

Own An H37i

New Call-to-action
Request A Demo
Download Brochure
Download Brochure
New Call-to-action
Calculate Productivity Savings

Warranty

2YEARSentire tractor
3YEARSor 3000 hours on drive system*
3YEARSengine
LEARN MORE *Gear Axle Assembly, Hydrostatic Transmissions for C, D, T and Hydrostatic Transaxles for B, H, S, R

Video



Model H
Teaser [0:30]



Model H
Introduction [1:52]



Model H
In-Depth [5:11]



High Production Mowing



Feature: Productive



Feature: Responsive



Feature: Balance



Feature: Snow Removal

Specifications

Engine

Manufacturer: Briggs & Stratton Vanguard

Model: Briggs Vanguard Big Block

Displacement: 993 cc (60.6 cu. in.)

Max Power: 37 HP @ 3650 RPM

Max Torque: 54 ft-lbs

Oil Filter: Briggs & Stratton P/N 842921

Cooling System: Air

Fuel: Gasoline (unleaded - min. 87 octane)

Fuel Capacity: 9.4 gal (35.6 liter) Two Independent 4.7 Gallon Tanks with Selector Valve

Electrical

Battery: 12V, 340CCA

Charging System: Flywheel Alternator

Charging Output: 50 Amp DC (Regulated)

Transmission

Manufacturer/Model: Dual Independent Hydro-Gear ZT3400 Integrated Transaxles

Steering: Hand Lever Control, Individual Wheel

Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position

Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)

Forward MPH (km/h): 0-10 MPH (16 km/h) Infinitely Variable

Neutral: Transaxle Release by Manual Dump Valve

Blade Drive

PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints

Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake [Stops Blades within Five (5) Seconds of Disengagement]

Deck

Recommended Cut Width: Side Discharge: 48 to 74 in. (152 cm), Rear Discharge: 52 to 64 in. (132 to 163 cm)

Cutting Height: 1 to 5 in (2.5 to 13 cm)

Deck Suspension: Torsion-Flex Frame with Caster Wheels and Counterweight Springs

Tires

Drive: 22 x 10.50-12 (4-Ply Low-Profile)

Tailwheel: 13 x 5.00-6 (Pneumatic 4-Ply)

Deck Caster: N/A

Size & Weight

LENGTH

  • Tractor Only: 69 in (175 cm)
  • Tractor with R64 deck: 108 in (274.3 cm)

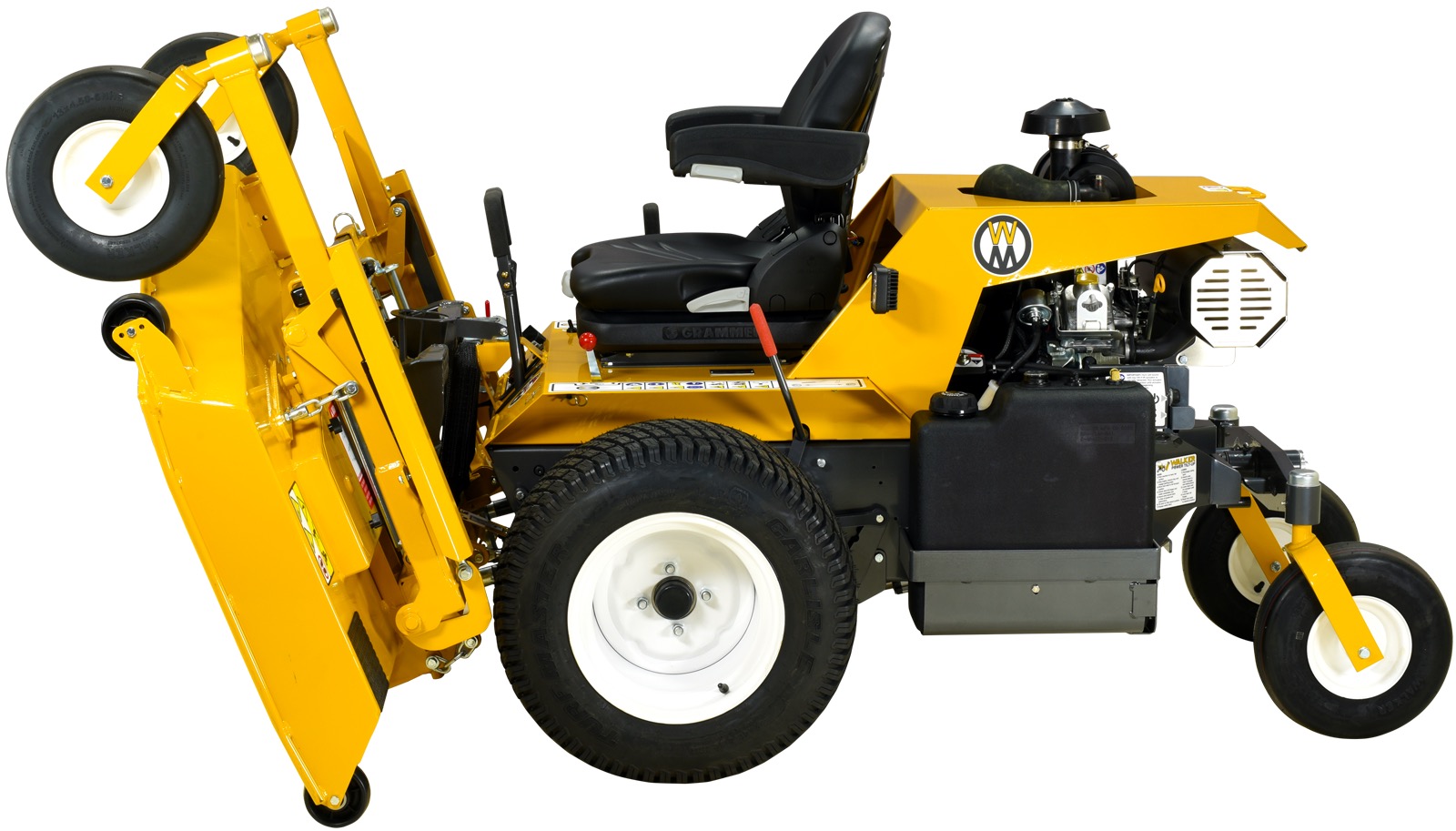

  • Tractor with deck tilted: 45.25 in (115 cm)
  • Tractor wheel base: 45.25 (115)

WIDTH

  • Tractor Only (Outside Tire): 46.5 in (118 cm)
  • Tractor with R64 deck: 66 in (168 cm)
  • Tread Width: 36.5 in (93 cm)

HEIGHT

  • Tractor: 46.5 in (118.1 cm)

WEIGHT

  • Tractor Only: 778 lbs (353 kg)
  • Tractor with R64 deck: 1215 lbs (551 kg)

Downloads

Manuals

Released Class Model Type Model S/N Range Manual P/N Download
11/20/2019 Model-H H27i Operator's 155013 - AND ON 2000-27 PDF
11/13/2019 Model-H H37i Operator's 155013 - AND ON 2000-29 PDF
10/08/2019 Model-H H24d Operator's 155013 - AND ON 2000-26 PDF
06/18/2018 Model-H H24d Operator's 145723 - 155012 2000-25 PDF
04/26/2018 Model-H H37i Operator's 150198 - 155012 2000-24 PDF
04/06/2018 Model-H H38i Operator's 147211 - AND ON 2000-21 PDF
03/29/2018 Model-H H37i Parts 150198 - AND ON 2000-23 PDF
02/21/2018 Model-H H27i Parts 145275 - AND ON 2000-22 PDF
02/07/2018 Model-H H24d Parts 145723 - AND ON 2000-18 PDF
02/07/2018 Model-H H38i Parts 147211 - AND ON 2000-20 PDF
02/01/2018 Model-H H27i Operator's 145275 - 155012 2000-19 PDF
01/13/2017 Model-H H27i Parts 125122 - 145274 2000-17 PDF
12/13/2016 Model-H H24d Parts 141635 - 145274 2000-16 PDF
12/12/2016 Model-H H24d Operator's 141635 - 145722 2000-15 PDF
11/16/2016 Model-H H25 Operator's 124882 - AND ON 2000-12 PDF
07/12/2016 Model-H H38i Operator's 139019 - 147210 2000-14 PDF
02/02/2016 Model-H H38i Parts 139019 - 147210 2000-13 PDF
10/21/2013 Model-H H27i Operator's 125122 - 145274 2000-10 PDF
10/17/2013 Model-H H25 Parts 124882 - AND ON 2000-8 PDF
07/19/2012 Model-H MBS29 Parts 115338 - 125121 2000-6 PDF
01/09/2012 Model-H MBS29 Operator's 125598 - 125121 2000-7 PDF
05/23/2011 Model-H MBSY Operator's 112057 - 141634 2000-4 PDF
05/23/2011 Model-H MBSY Parts 112057 - 141634 2000-5 PDF
09/15/2010 Model-H MBS Operator's & Parts 105258 - 124881 2000-2 PDF
03/31/2008 Model-H MBS Operator's & Parts 93904 - 105257 2000-1 PDF
